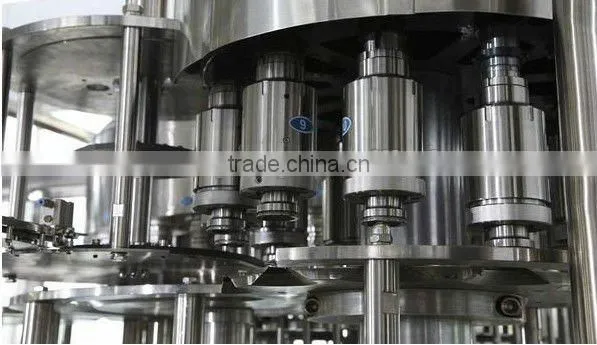

Help Center3in1 Hot Tea Filling Machine
Related Products
Specifications
The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice.The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice. The machine integrates washing, filling, capping together. The design is scientific and reasonable. With the advantages of scientific and reasonable design, beautiful appearance, convenient operation and maintenance, and high degree of automation, it is the first choice for hot-filling drink.
Features:This machine is designed bottleneck suspension type and applies the lift technology of filling valve, which meets the need of hot filling technology below 95. It adopts human-machine touch screen control, PLC computerized control, transducer control and other advanced technology. All the parts contacting with material are made from SUS304 stainless steel. The primary electric components and pneumatic components introduce international famous products, such as Mitsubishi, Schneider, Omron and so on.
Technical Parameter
Model |
RCGF16-16-6 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
capacity(BPH) |
4000-5000 |
5000-6000 |
6000-8000 |
8000-10000 |
16000-18000 |
can bottles type |
Bottle Diameter:φ50mm-φ100mm;Height:150mm-310mm |
||||
pressure of washing bottle(mpa) |
0.2-0.25 |
||||
watering consumption(kg/h) |
1200 |
1500 |
1800 |
2400 |
3200 |
compressed air pressure(mpa) |
0.6 -0.8 |
||||
Air consumption(m3/min) |
0.1 |
0.4 |
0.4 |
0.5 |
0.8 |
Total power (kw) |
2.2 |
3 |
4 |
6.2 |
7.5 |
Total weight (kg) |
2500 |
2800 |
3500 |
6000 |
8500 |
Dimension (mm) |
2350x1750x2250 |
2480x1960x2250 |
3010x2180x2400 |
4000x2200x2500 |
4650*3300*3400 |
