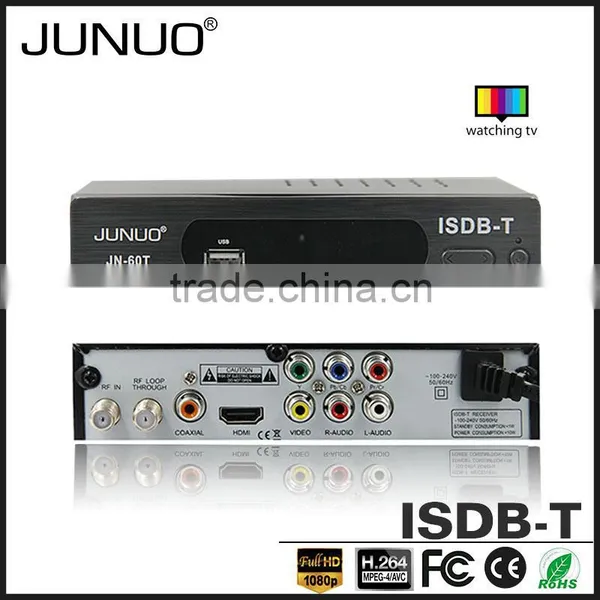

JUNUO Shenzhen Manufacture OEM H.264 MPEG4 HD Mstar Ecuador Digital tv Converter Set Top Box
JUNUO shenzhen manufacture OEM H.264 MPEG4 HD mstar Ecuador digital tv converter set top box
| SPECIFICATION | ||||
| CPU | MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | ISDB SOC Chip Set | |||
| TUNER | Rafael R836 | |||
| Front Panel | ||||
| * USB 2.0 Embedded One Host | ||||
| * 4 digital LED display on front panel | ||||
| * Red LED Standby, Green LED Lock | ||||
| * Panel KEY, POWER, CH+ ,CH- | ||||

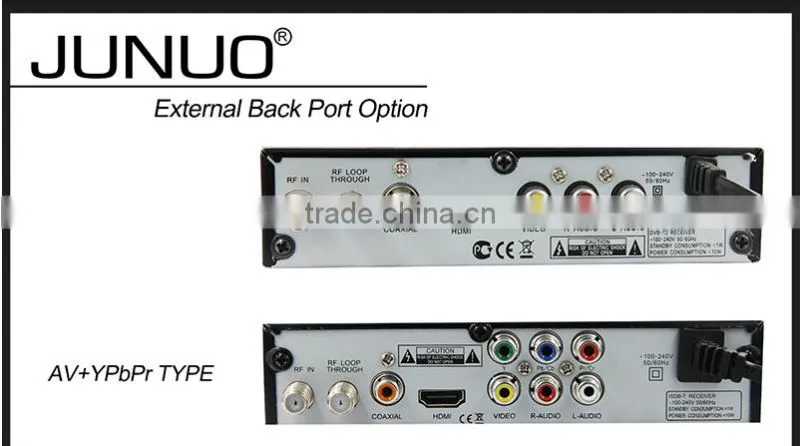

| Rear Panel | ||||
| * Tuner RF input connector * Tuner RF Loop through connector | ||||
| * EC-type IEC169-2 Female * IEC-type IEC169-24 Male | ||||
| * HDMI V1.3/V1.4 * RCA CVBS AL AR Connector x1 | ||||
| * Coaxial x1 * Power AC100~240V 50Hz/60Hz | ||||
| Demodulation | ||||
| Terrisal Receiver Standard : | ISDB-T broadcast (1, 3, 13 segment) | |||
| Input RF Frequency : | VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz. | |||
| Bandwidth : | 6MHz | |||
| Demodulation : | QPSK / 16QAM / 64QAM/QPSK or DQPSK | |||
| FEC : | 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic | |||
| Guard Interval : | 1/4,1/8,1/16,1/32 | |||
| FFT Mode : | 2K/ 8K/32K | |||
| Input level : | -83 - -5dBm | |||
| Sortware Features | ||||
| used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,Philippines Ecuador | ||||
| • Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant | ||||
| • Support 3D interface | ||||
| • Support teletext/subtitle/muti-language | ||||
| • Supported 7-Day EPG function, VBI Teletext | ||||
| • AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| • USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| • Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 | |||
| MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) | ||||
| MPEG-2 Main Profile# Main Level(15Mbps) | ||||
| H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | ||||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 , AAC-LC, WMA | |||
| E-AC-3,ecoding HE-AAC 5.1 multi-chhannel decoding | ||||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) | |||
| Photo Codec | JPEG, BMP, PNG | |||
| Accessories | ||||
| * Color box * AV cable * User Manual | ||||
| * HDMI cable optional * IR remote control | ||||
| Loading | ||||
| Machine size | 168*100*38mm | Packaged size | 41*31*33cm | |
| Pcs/Ctn | 20pcs | Carton weight | about 11kg | |
| Packing: | Shipping |
| 1 Color Box | By air |
| Color box : 198*155*58mm/250*60*255mm | By sea |
| Qty per export carton : 20pcs pieces | By express |
| Meas. per export carton : 375*260*235mm/41*31*33cm | All depend on your needs! |
| Sona Liang | ||
![]() |
QQ : 3191608761 | |
| Skype : sales09.juno | ||
Email : ![]() | ||
| TEL/Whatsapp : +86 159 9299 3705 | ||
| Website : | ||
|
Contact me for the Best Price and further information !! | ||
