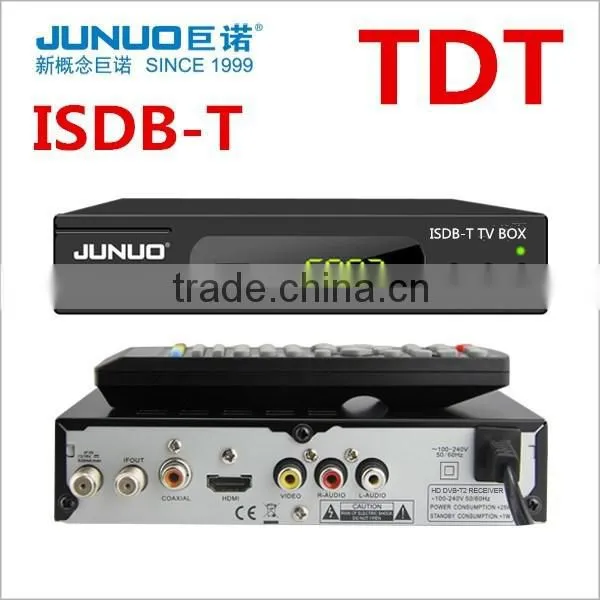

2016 bestselling manufacture OEM HD MEPG4 Digital TV Box ISDB-T Set Top Box Japan Brazil Argentina Peru Venezuela

CPU

MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz

Memory

32X16Mbit  DDR2 Frequency1066

Flash

32M bytes

Demodulator Type

 ISDB SOC  Chip Set

TUNER

Rafael R836

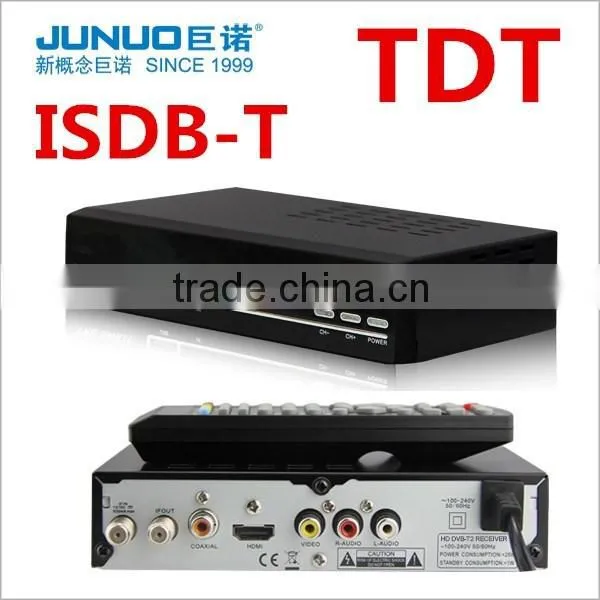

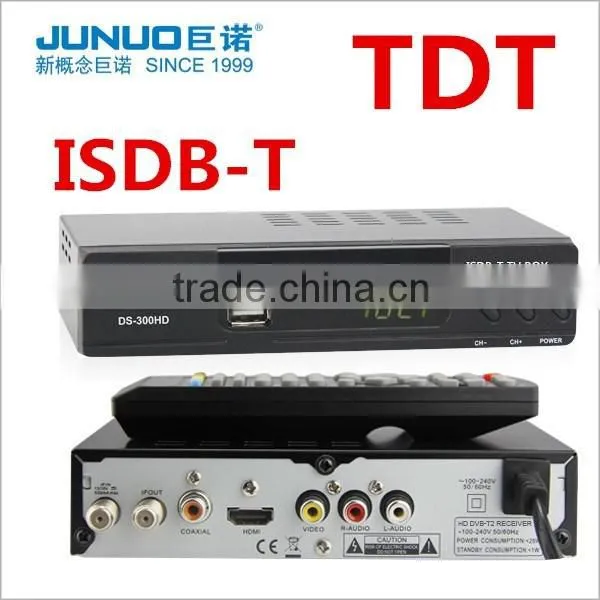

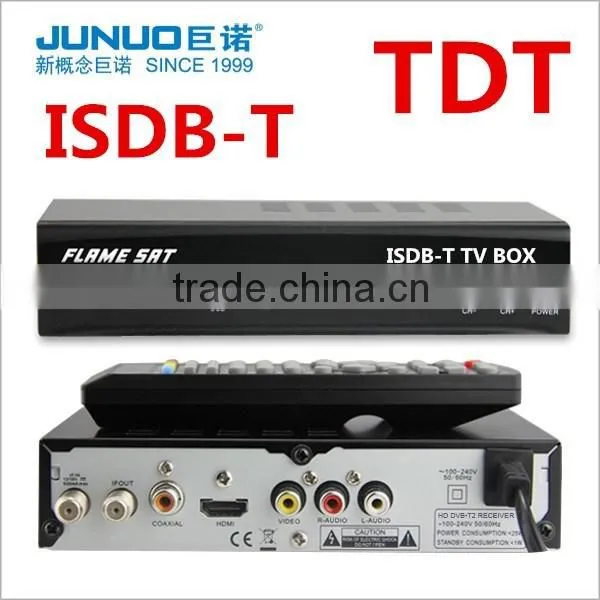

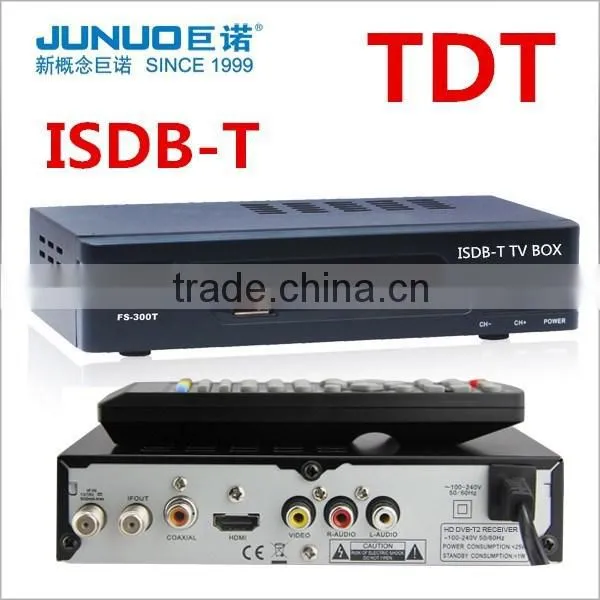

Front Panel

USB 2.0 Embedded One Host,

4-digit LED display on front panel

red LED Standby,green  LED Lock

 Panel KEY, POWER, CH+ ,CH-

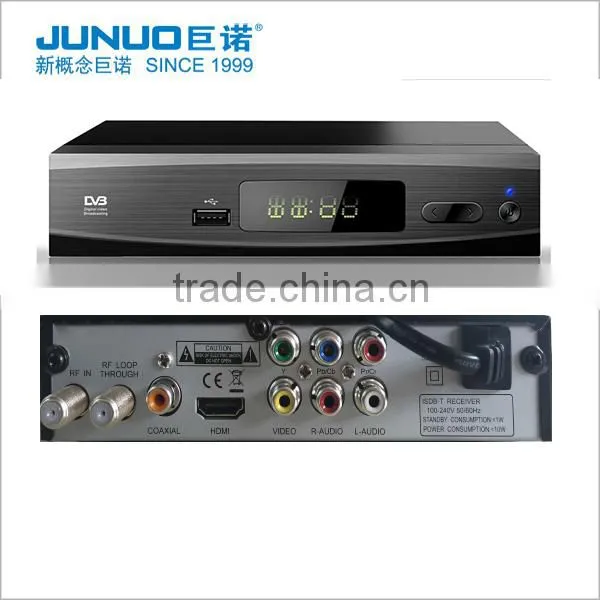

Rear Panel

Tuner RF input connector

EC-type IEC169-2 Female

Tuner RF Loop through connector

IEC-type IEC169-24 Male

HDMI V1.3/V1.4

RCA  CVBS AL AR Connector  x1

Coaxial x1

Power  AC100~240V  50Hz/60Hz

Demodulation

Terrisal Receiver Standard

 ISDB-T broadcast (1, 3, 13 segment)

Input RF Frequency

 VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.

Bandwidth

6MHz

Demodulatio

QPSK / 16QAM / 64QAM/QPSK or DQPSK

FEC

1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic

Guard Interval

1/4,1/8,1/16,1/32

FFT Mode

2K/ 8K/32K

Input level

 -83 - -5dBm

Sortware Features

•used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,Philippines Ecuador

•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant

•Support 3D interface

•Support teletext/subtitle/muti-language

•Supported 7-Day EPG function, VBI Teletext

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

 Decoder

Video Decoder

Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile# Main Level(15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 , AAC-LC, WMA

E-AC-3,ecoding  HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features

MediaCodec

avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec

 WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec

JPEG, BMP, PNG

Accessories

Accessories

gift box

AV cable

HDMI cable optional

IR remote control

User Manual

Loading

Loading

machine size

168*100*38mm

Packaged size

41*31*33cm

Pcs/Ctn

20pcs

Carton weight

11kg

Loading for 40GP

18360pcs

Loading for 20HQ

9180pcs
