25kva Single Phase Alternator Generator 220v
- Shanghai
- T/T Credit Card
You May Like
-
140KW Stamford Type Single Phase Brushless AC Alternator With 100% Copper Wire
-
175KVA/175KW Stamford Type Single Phase 100%output Brushless AC Alternator/dynamo PF1.0
-
STAMFORD AC BRUSHLESS ALTERNATOR / GENERATOR 37.5KVA
-
Single Phase Brushless AC Synchronous Alternator Generator 25kw 220v
-
50kw Single Phase Brushless Alternator 240 Volt China Manufacturer
-
ac Alternator 100kva/ 125kva/ 150kva
Product Details
| Place of Origin | Jiangsu, China | Brand Name | FARRAND | |
| Model Number | FLD184H | Output Type | AC Single Phase | |
| Speed | 1500RPM / 1800RPM | Frequency | 50Hz / 60Hz | |
| Rated Power | 25.0KW/ 31.3KW | Rated Voltage | 110V - 240V | |
| Rated Current | AMPS |
Product Description
25kva Single Phase Alternator Generator 220v
Profile:
- ♦Insulation Class H, IP23 Protection degree.
- ♦Shunt excitation with AVR SX460
- ♦Single bearing and double bearing can be choosed
- ♦100% USA Essex high quality copper wire and 100% output, 2/3 pitch winding
- ♦ AC Brushless single phase output type generator head for engine
- ♦The voltage from 110V-240V(1 phase), can be adjusted up slightly.
- ♦All components are dipped lacquer twice. etc.
Detail Parameters :
FLD184H(1 phase)
Farrand Type | 50Hz 1500RPM | 60Hz 1800RPM |
| 110- 690V | 110- 690V | |
| KVA | KVA | |
FLD184H | 25.0 | 31.3 |
Other FLD184 details
Farrand Type | 50Hz 1500RPM | 60Hz 1800RPM | 50Hz 1500RPM | 60Hz 1800RPM | ||
| 110- 690V | 110- 690V | 110 - 240V | 110 - 240V | |||
| KVA | KW | KVA | KW | KVA | KVA | |
FLD184E | 22.5 | 18.0 | 30.0 | 24.0 | 15.0 | 18.4 |
FLD184F | 27.5 | 22.0 | 34.4 | 27.5 | 18.5 | 21.9 |
FLD184G | 31.3 | 25.0 | 37.5 | 30.0 | 21.0 | 25.0 |
FLD184H | 37.5 | 30.0 | 46.9 | 37.5 | 25.0 | 31.3 |
| FLD184J | 40.0 | 32.0 | 50.0 | 40.0 | 28.0 | 35.0 |

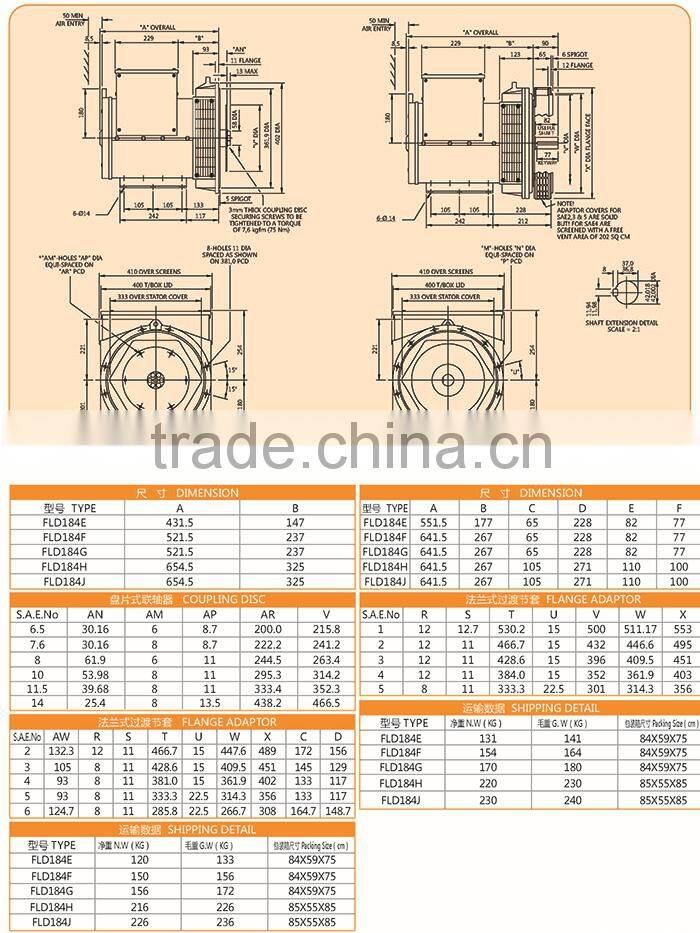

Installation/connection dimension
AVR :
We have many types of AVR ,such us SX460 , SX421 , MX341 , MX321 ,etc .
· FLD184H single phase is equipped with SX460 .
. The main stator provides power for excitation of the exciter field via AVR .
· Output power of exciter's rotor is input to that of mains through 1-phase full wave rectifier .
· Connected with piezoresistance for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss .
· Exciter's Stator is equipped with permanent magnetic steel , it can make generator starting smoothly in any occasions .
100% USA Essex high quality copper wire.
Competitive Advantage :
♦Low MOQ: Diesel AC Generator can meet your promotional business very well.
♦OEM Accepted : We can match any your samples .
♦Good Service : We treat clients as friend.
♦Good Quality :We have strict quality control system .Good reputation in the market.
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

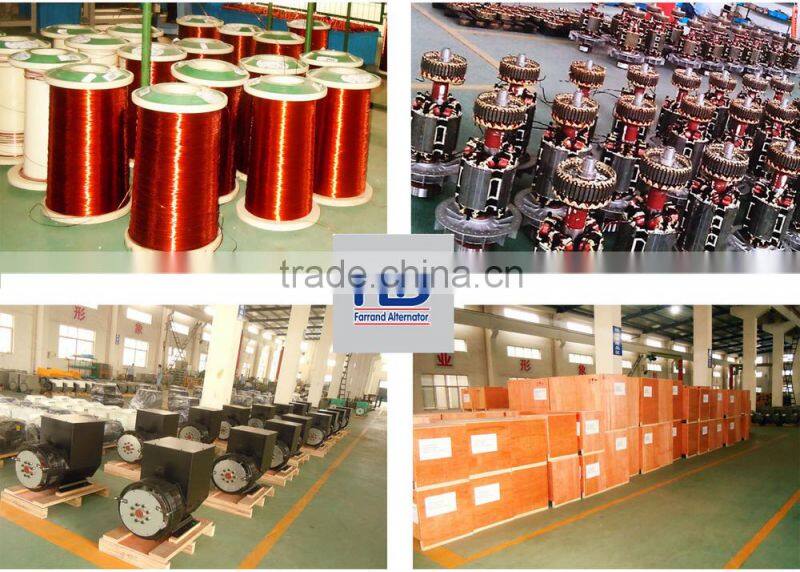

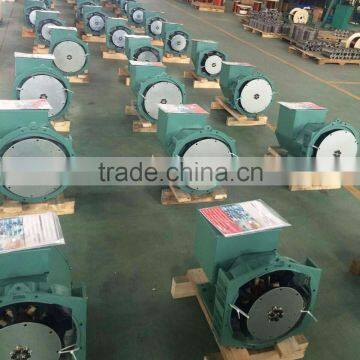

We are specialized in manufacturing and export of AC brushless synchronous alternator compatible with the Stamford type alternator. For the past five years we haveexported our alternators to many countries such as USA, Europe, Middle East,Australia, Taiwan, Africa, Russia, South East Asia, etc. Of course we have the CE safety certification.
Our alternator are ranged from 5KVA to 1500KVA single and three phase, 50Hz and 60Hz in different Voltage types. For sure we use only the USA Essex high quality solid copper wire for all our alternators to ensure maximum power output. Link our website or http://wxfalande.en.china.cn/
Q . How much will the shipping of my order cost ?
Our shipping costs are calculated depending on the total weight and measurement CBM of the items you wish to purchase and your destination .We always do our best to keep the shipping costs to a minimum .Our forwarder has a long contract with us ,we can get a big discount for you .
Q . How long does a sample takes ?
If we have in stock , a sample will be delivered less than 3days .
Usually a sample takes 5 days .Please contact us which type that you needs , we will show you delivery time immediately .
Q . What is the MOQ of the product ?
Our MOQ can meets your promotional business very well .
Q . Do you accept OEM ?
Yes , we do . We can match any your samples .
Q . What is the level of ingress protection ?
Ingress protection 22 standard , IP23 can be choosed .
