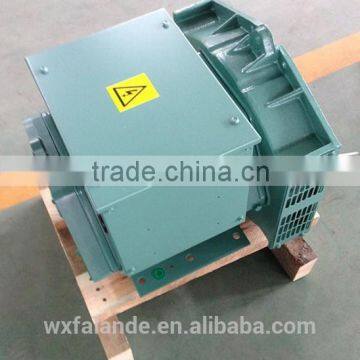

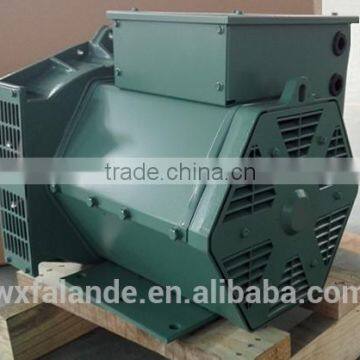

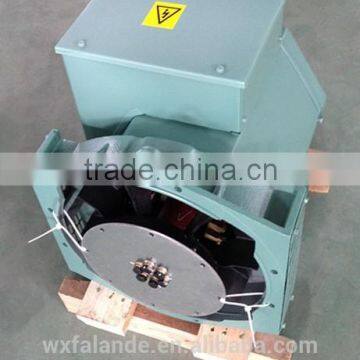

1 phase synchronous alternator/230v 50hz single phase alternator

Product Description
FLD series brushless & self-excited AC synchronous alternator w/ permanent magnetism
Alternator	Powered by LOVOL/DOOSAN/ISUZU/CUMMINS/PERKINS/DEUTZ
Model No.	FLD162/FLD164/FLD182/FLD184/FLD224/FLD274/FLD274J-K/FLD444/FLD544/FLD634 Series etc.
Rated Output(KVA/KW)	5KW~1000KW
Voltage	110V~690V
Frequency	50Hz, 60Hz
Rotational Speed	1500rpm, 1800rpm, 3000rpm, 3600rpm
Power Factor	0.8 in 3 phase, 1.0 in 1 phase
Insulation Class	Class H
Ingress Protection	IP22, IP23
AVR(Option)	SX440, SX440T, SX460, AS440, AS460, MX321, MX341

Main Features:
* Optional permanent magnetic alternator, provide invariable excitation in any situation.
* Easy to be connected with power network or other alternators. Standard 2/3 Pitch windings avoid excessive neutral current.
* Dynamically balanced rotors, with single or two sealed ball bearings.
* Wide range of flange adaptor and single bearing coupling disc.
* Build to conform to all leading industrial & marine standards.
* All wound components are made up with specialized material and immersed in varnish by especial technology.

Packaging & Shipping

1 phase synchronous alternator/230v 50hz single phase alternator

Shrink wrapped and then plywood case or wooden case or customers required
7~15days since got full payment in Shanghai port

Our Services

1 phase synchronous alternator/230v 50hz single phase alternator

* one year guarantee for whole machine except of tube and lens.
* 24 hours technical support by e-mail
* call or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
* spare parts availability and short delivery time

After Sale Contact:
Jiangsu Farrand Alternator Technology Co., Ltd.
Add: No.32 Jingxin Road, Xibei Industrial Park, Xishan Area, Wuxi, China.(ZIP: 214194)
Tel: +86-510-88710808
Fax: +86-510-88713838
Website:

Jiangsu Farrand Alternator Technology Co., Ltd.: Contact nameKevin Sun
Chat Now; Phone86-510-88710808; AddressJing Xin Road 32,Xibei Town, Xishan District, Wuxi City,, Wuxi, Jiangsu

2 bearing alternator/generator	2 pole brushless alternator	6kva-75kva alternator	75kva--375kva Alternator
FLD164 SERIES	FLD184 SERIES	FLD224 SERIES	FLD274 SERIES
FLD444 SERIES	FLD544 SERIES	FLD634 SERIES	New Products
Single Phase Alternator/Generator	Three phase Alternator/Generator

Jiangsu Farrand Alternator Technology Company is a professional manufacturer of self-excited synchronous alternator. We can produce FLD series brushless AC synchronous alternator with power 5KW~1000KW, frequency 50Hz&60Hz in different voltage types. All interfaces according to international standard can match the world famous engine, such as Cummins, Deutz, MTU, Perkins & Volvo etc.. We have strictly quality control procedure and mechanism to ensure each alternator is of good quality before delivery. Surely we have owned CE & SGS ISO9001 certification. In the past few years we have exported our alternators to many countries such as USA, Europe, Middle East, Taiwan, Africa and South East Asia etc..
