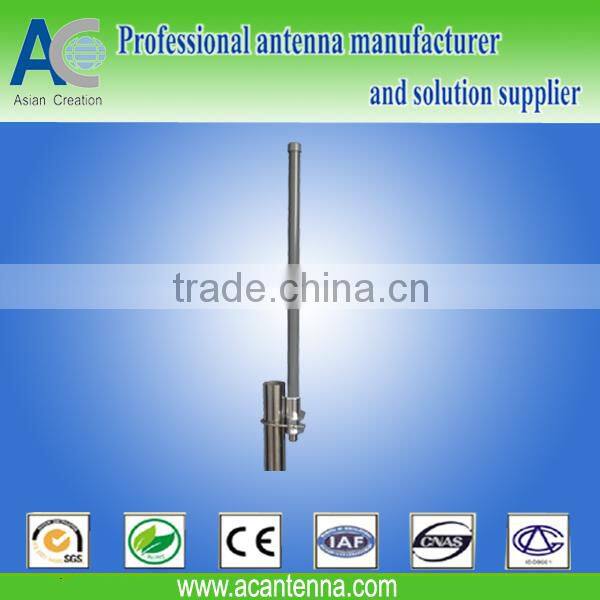

2.4/5.8GHz omni outdoor dual band fiberglass antenna 8dBi
Applications:
2.4GHz-2.5GHz/5.8GHz 08dBi ISM Band
IEEE 802.11b, 802.11g, 802.11n Wireless LAN
Directional and multipoint applications
Bluetooth,WiFi, RFID
Public Wireless Hotspot
Wireless Video Systems
Features :
Superior Performance
The Weight is light
Good appearance designs
Installed for vertical or horizontal polarization
Outdoor antenna for public Hot spots
Heavy Duty mounting
RoHS Compliant
To increase the range and reliability of wireless links
antennas also feature rugged,
weatherized construction making them well suited for
both indoor and outdoor applications

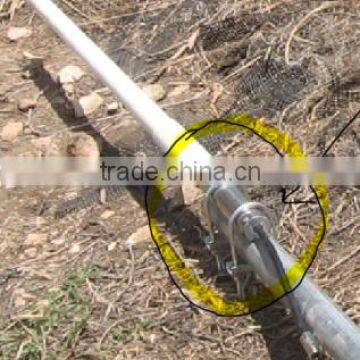

The antenna includes complete mounting hardware for standard masts
Electrical Specifications | |
Model |
AC-Q2458F08 |
Frequency Range |
2400-2483/5150-5850 MHz |
Gain |
6/8dBi |
V.S.W.R |
2400-2483MHz ≤1.5 5150-5850MHz≤2.5(Max) |
Polarization |
Vertical |
Horizontal Beam width-° |
360 |
Vertical Beam width-° |
22 |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+60℃ |
Connector |
N Female |
Mechanical Specifications | |
Antenna Dimension |
Φ20*770MM |
Weight |
300G |
Color |
White or Gray |
Mounting Mast Diameter |
Φ40 to Φ50 mm |
Memo: Above specification subject to change without further notice.Please contact us for more details.
