Help CenterMeter Reading Antenna
Related Products

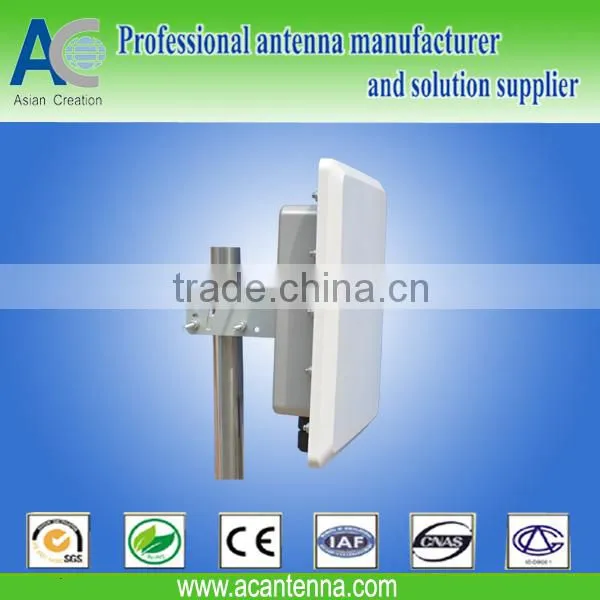

meter reading antenna
Applications:
5.8G Communication System
Support IEEE802.11a
Point to point, point to multipoint
Features:
High gain, High F/B ratio
Low profile, Small size, Light weight
Dual polarization operation
Integrated enclosure, with pigtail
With customer mounting plate
Electrical Specifications | |
Model |
AC-D58W23X2-33E |
Frequency Range |
5150-5850MHz |
Gain |
2×23dBi |
VSWR |
≤2.0 |
Polarization |
Vertical and Horizontal |
Horizontal Beam Width |
12 |
Vertical Beam Width |
12 |
F/B Ratio |
>25dB |
Impedance |
50Ω |
Maximum Input Power |
100W |
Connector |
SMA×2 female |
Operating Temperature |
-40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension |
330x330x75mm |
Weight |
2.8Kg |
Mounting Mast Diameter |
Ø30~Ø50mm |
Rated Wind Velocity |
241Km/h |
Memo: Above specification subject to change without further notice.Please contact us for more details.
