Help Center2.4G/5.8G Omni 360 Degree MIMO Wifi Hotspot Antenna
Related Products

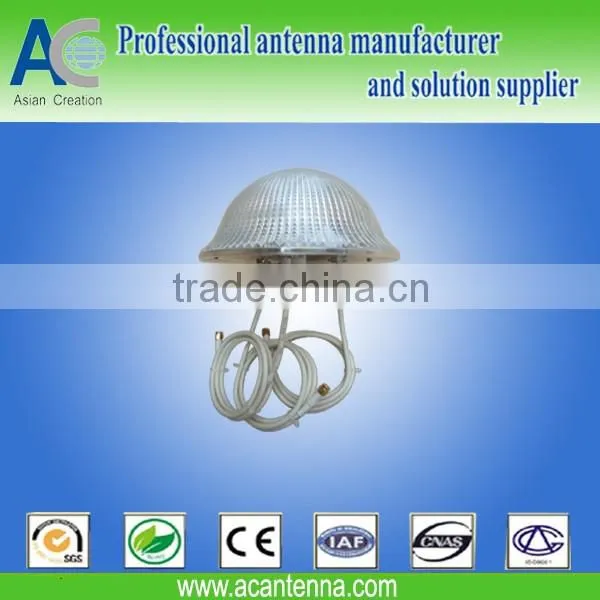

2.4G/5.8G omni 360 degree MIMO wifi hotspot antenna
Applications
2.4GHz Communication System
Support IEEE802.11a
Point to point, point to multipoint
Features
High gain, High F/B ratio
Low profile, Small size, Light weight
Dual polarization operation
Integrated enclosure, with pigtail
With customer mounting plate
Electrical Specifications | |
Model |
AC-D2458I06 |
Frequency Range |
2400-2483MHz/5150-5850MHz |
Gain |
3dBi |
VSWR |
≤1.5 |
Polarization |
Vertical |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
SMA*3 male |
Operating Temperature |
-40°C to+80°C |
Mechanical Specifications | |
Cable length |
300mm |
Cable type |
RG58U |
Antenna Dimension |
Φ190*85mm |
Weight |
300g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
