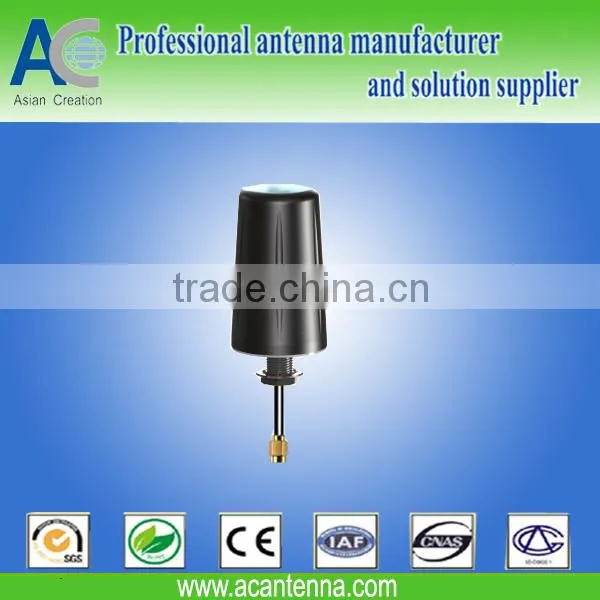

Long Range LTE Dual Band Antenna 5Dbi Gain For Fpv Antenna With Best Design
for 2. 4ghz spread spectrum of communications mobile
terminal design of the secondary benefits of antenna an
antenna body. the special rubber in beauty for installing.
Features:
antenna for 2. 4g system of communication terminals. the antenna
design of the production structure and beauty for installing.
Electrical Specifications | |
Model |
AC-Q6027-DL |
Frequency Range |
698-960/1710-2700MHz |
Gain |
5dBi |
V.S.W.R |
≤2.5:1 |
Radiation |
Omni |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Cable Type |
RG58U |
Cable length |
3M |
Operating Temperature |
-40℃ to+70℃ |
Mounting way |
Screw |
Connector |
SMA Male |
Mechanical Specifications | |
Antenna Dimension |
48×120 mm |
Weight |
160g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
