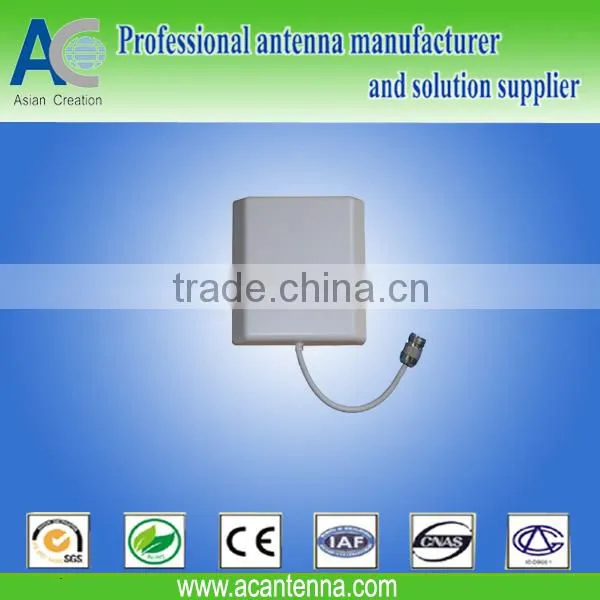

patch panel antenna
Spotlight:
Wall Mount Antenna
Gain:5/7dBi
V/H Polarization
ABS Radome
Applications:
AMPS/GSM/DCS/UMTS/3G/800~2500MHz
Wall Mount,Indoor Used,Broadband Operation
Wall Mount,Indoor Used Compact Size, Low Profile
Features:
UNII ISM system
point-to-point
more applications for support.
Electrical Specifications | |
Model |
AC-D6027W08 |
Frequency Range |
698-960/1710-2700MHz |
Gain |
5/7dBi |
VSWR |
≤ 2.0 |
Polarization |
Vertical |
Horizontal Beam Width |
68 |
Vertical Beam Width |
58 |
F/B Ratio |
>20dB |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
N female |
Operating Temperature |
-40℃ to+80℃ |
Length |
300mm |
Cable type |
RG58U |
Mechanical Specifications | |
Antenna Dimension |
207×180×45mm |
Weight |
500g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
