Help CenterLM40UUOP Linear Motion Adjustable Bearing
Related Products
-
Supplying High Performance Linear BearingUS$ 0.5 - 15MOQ: 100 Pieces -
Good Price LM8UU Flange Linear BearingUS$ 0.5 - 20MOQ: 100 Pieces
-
Linear Bearings LM20UUUS$ 0.5 - 20MOQ: 100 Pieces
-
Linear Motion Slide Bearings KH0824 Linear BearingUS$ 0.5 - 20MOQ: 100 Pieces
-
Linear Motion Bearing KH5070 Linear BearingUS$ 0.5 - 20MOQ: 100 Pieces
Specifications
LM40UUOP Linear Motion Adjustable Bearing1Non-standard size available
2Manufacturer
3Certificate:ISO9001:2008
SPECIFICATION:
QUICK INFORMATION;
Brand :WERB
type;LMUU25OP
ball circuit:5
outside diameter:60mm
bore size;40mm
thickness;80mm
| LM..UU-OP | BALL CIRCUIT | weight(gf) | dr mm | D mm | L mm |
| LM10UU-OP | 3 | 23 | 10 | 19 | 29 |
| LM12UUOP | 3 | 25 | 12 | 21 | 30 |
| LM13UU-OP | 3 | 34 | 13 | 23 | 32 |
| LM16UU-OP | 4 | 52 | 16 | 28 | 37 |
| LM20UU-OP | 4 | 69 | 20 | 32 | 42 |
| LM25UU-OP | 5 | 188 | 25 | 40 | 59 |
| LM30UU-OP | 5 | 210 | 30 | 45 | 64 |
| LM35UU-OP | 5 | 335 | 35 | 52 | 70 |
| LM40UU-OP | 5 | 500 | 40 | 60 | 80 |
| LM50UU-OP | 5 | 1.340 | 50 | 80 | 100 |
details:
Linear bearing Features:
"UU" means rubber seals on the both sides of the long type bearing
"LM" means metric standard type
"LME" means inch standard type
"OP" means open type
"AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
Application:
Linear bearings are widely used in electronic equipment, tensile testing machine
and the digital three-dimensional coordinate measuring equipment, precision equipment,
and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,
printer, card sorting machine, food packing machines and other industrial machinery sliding components

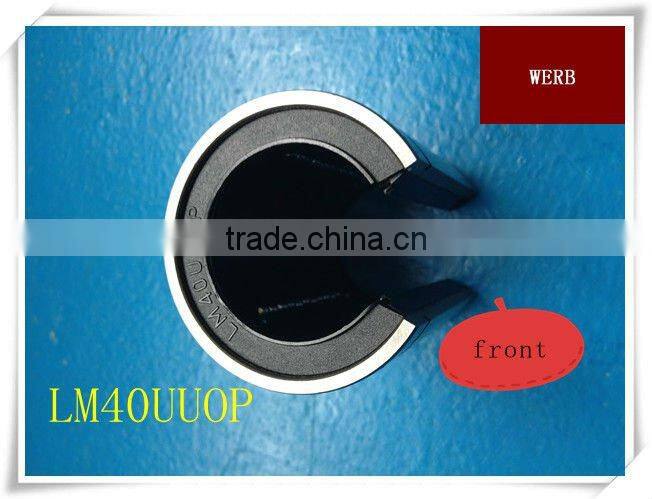

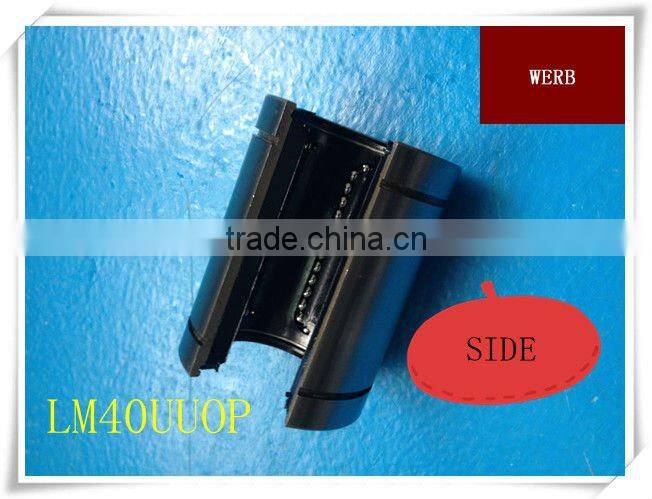

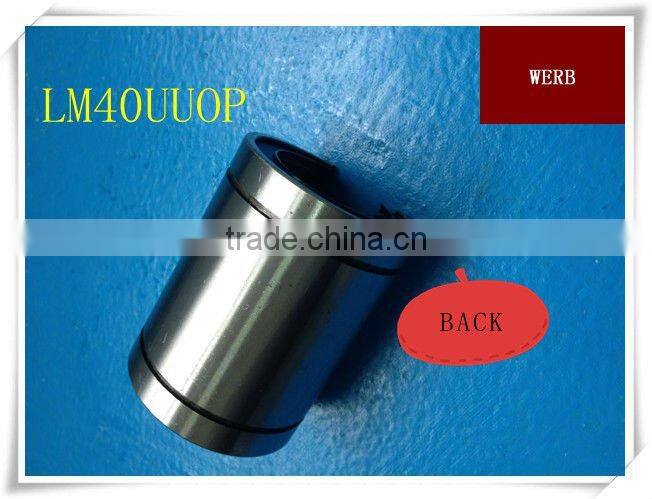

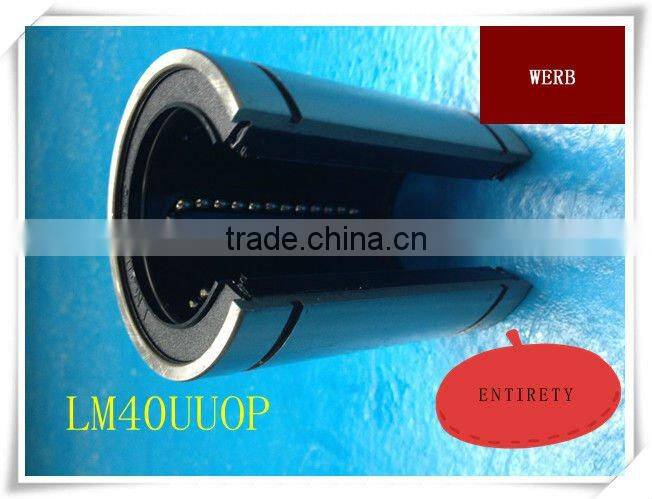

PHOTOS:
PRODUCT FLOW
Why buy from us?
1.Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2.Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3.Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
