Specifications
linear motion bearing LM10UUAJBrand: WERB
outside diameter:19mm
bore size;10mm thickness;29mm
SPECIFICATION:
QUICK INFORMATION;
Brand :WERB
type;LM10UUAJ
ball circuit:5
outside diameter:19mm
bore size;10mm
thickness;29mm
| LM..UU-OP | BALL CIRCUIT | weight(gf) | dr mm | D mm | L mm |
| LM10UU-AJ | 3 | 29 | 10 | 19 | 29 |
| LM12UUAJ | 3 | 31 | 12 | 21 | 30 |
| LM13UU-AJ | 3 | 42 | 13 | 23 | 32 |
| LM16UU-AJ | 4 | 68 | 16 | 28 | 37 |
| LM20UU-AJ | 4 | 85 | 20 | 32 | 42 |
| LM25UU-AJ | 5 | 216 | 25 | 40 | 59 |
| LM30UU-AJ | 5 | 245 | 30 | 45 | 64 |
| LM35UU-AJ | 5 | 384 | 35 | 52 | 70 |
| LM40UU-AJ | 5 | 579 | 40 | 60 | 80 |
| LM50UU-AJ | 5 | 1.560 | 50 | 80 | 100 |
details:
Linear bearing Features:
"UU" means rubber seals on the both sides of the long type bearing
"LM" means metric standard type
"LME" means inch standard type
"OP" means open type
"AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
Application:
Linear bearings are widely used in electronic equipment, tensile testing machine
and the digital three-dimensional coordinate measuring equipment, precision equipment,
and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,
printer, card sorting machine, food packing machines and other industrial machinery sliding components

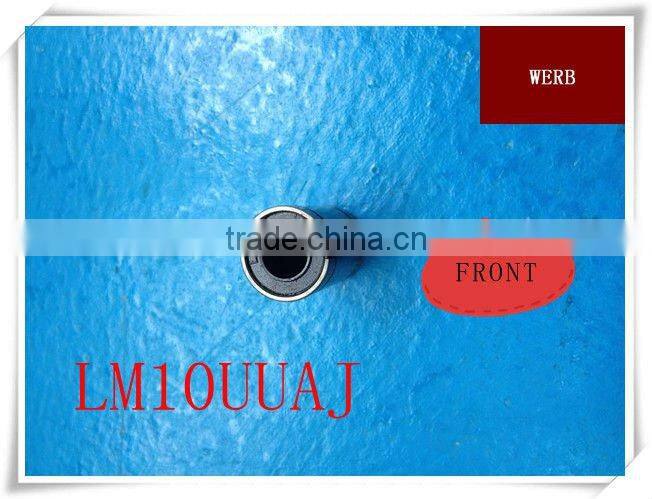

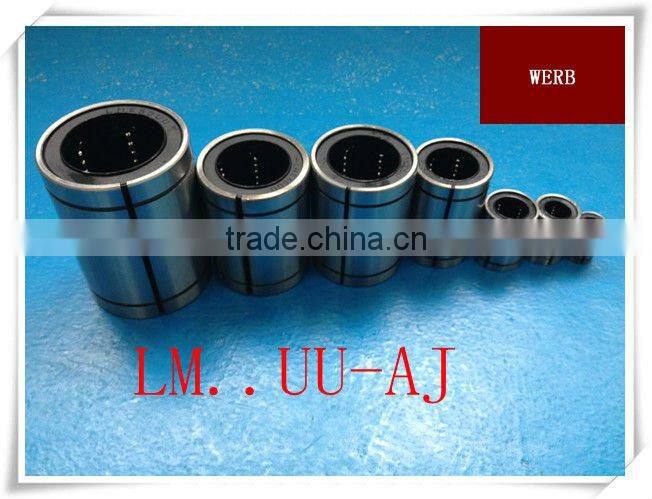

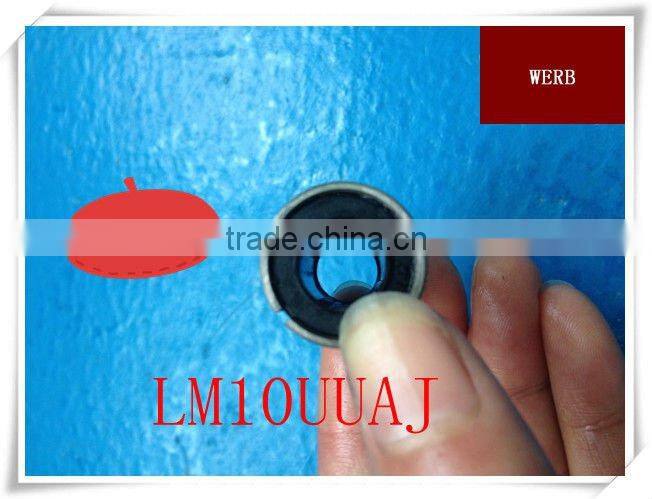

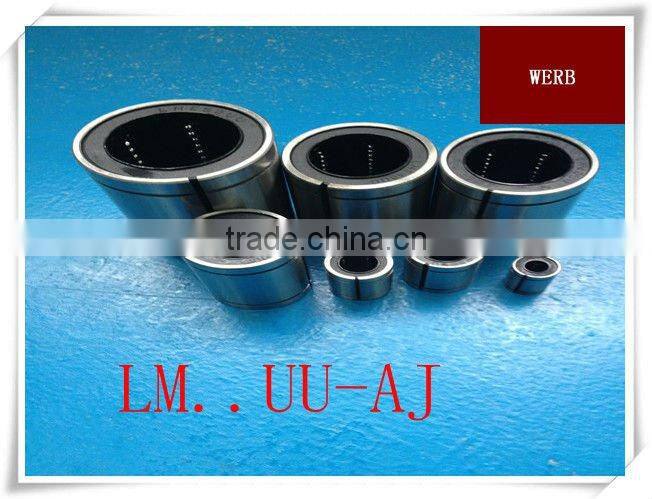

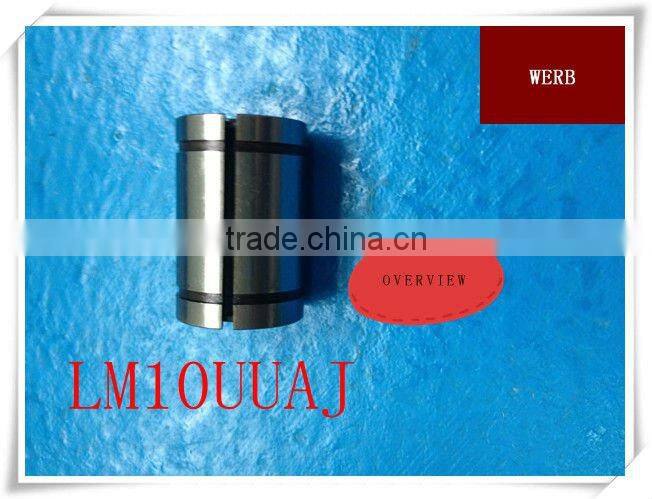

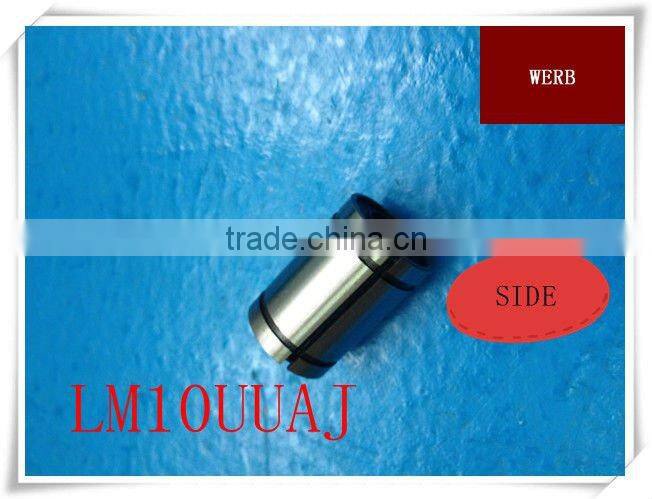

PHOTOS:
PRODUCT FLOW
