Help CenterBrand Gps Active Antenna TNC Series Connector Combined Gps Gsm Antenna
Related Products
-
4 3 Gps Sat Nav Active Antenna TNC Series ConnectorUS$ 0.73 - 0.89MOQ: 50 Pieces -
5" Pilot Gps Active Antenna TNC Series ConnectorUS$ 0.73 - 0.89MOQ: 50 Pieces
-
2.4GHz 18dBi WiFi Directional Panel Antenna N Female 9dbi Wifi AntennaUS$ 139 - 143MOQ: 11 Pieces
-
Brand Gps Active Antenna TNC Series Connector for Alpine Car Gps NavigationUS$ 0.73 - 0.89MOQ: 50 Pieces
-
2.4GHz 18dBi WiFi Directional Panel Antenna N Female 10dbi Wifi Wireless AdapterUS$ 139 - 143MOQ: 14 Pieces
Specifications
bined gps gsm antenna2.Connector type:TNC
3.Connector Style:straight
4.Cable Type:RG174
5.Product Type:GPS

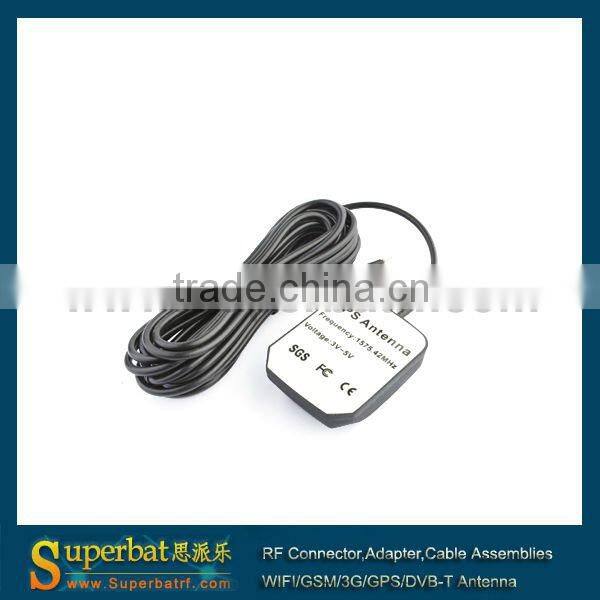

GPS Active Antenna TNC series connector 2M/3M/5M # C01
Model:
Description:
(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Cable :RG174 3 meter / contact us for other length

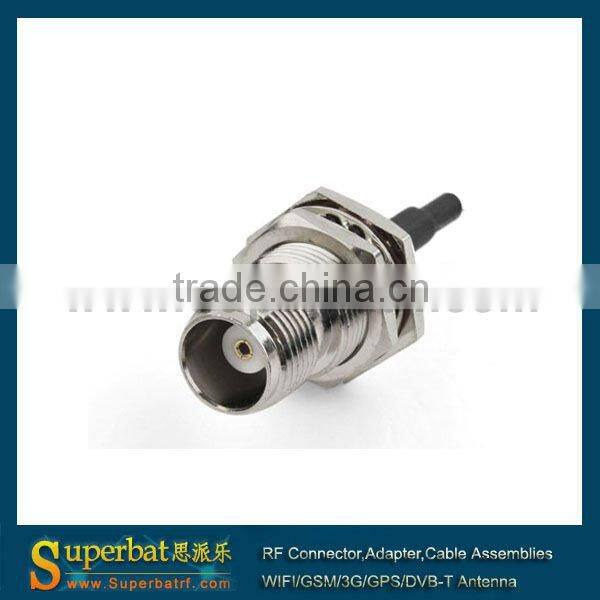

Connector : 1.TNC jack

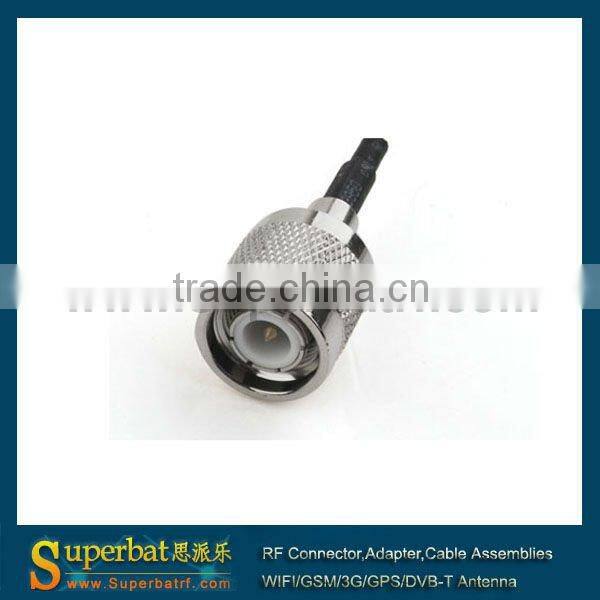

2.TNC male
SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

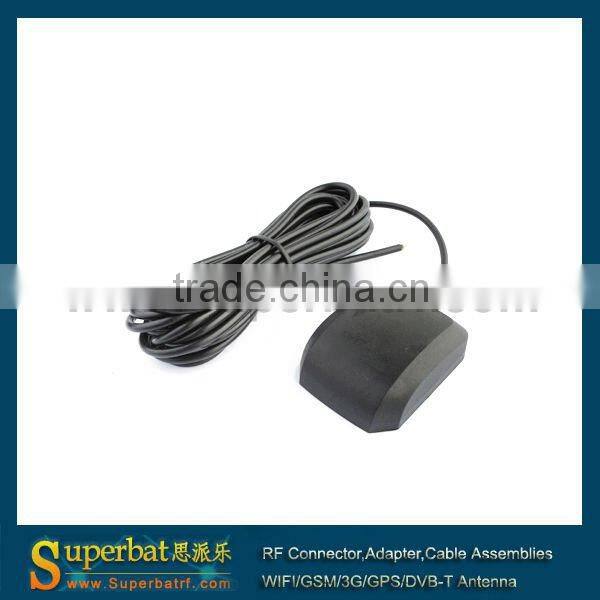

Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
Please note these information
