Specifications
1.marine gps antenna2.Connector type:FME male/female
3.Cable Type:RG174
4.with magnetic base 3m cable
5,customize is OK

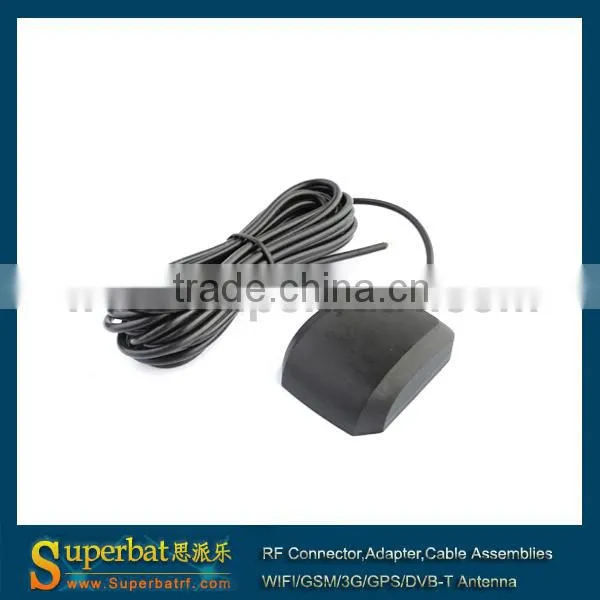

marine gps antenna with 3m extension cable FME Connector
Model: GA05-300-F02SJ
Description:
(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Cable :RG174 3 meter / contact us for other length
Connector : FME female default
FME male
SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
