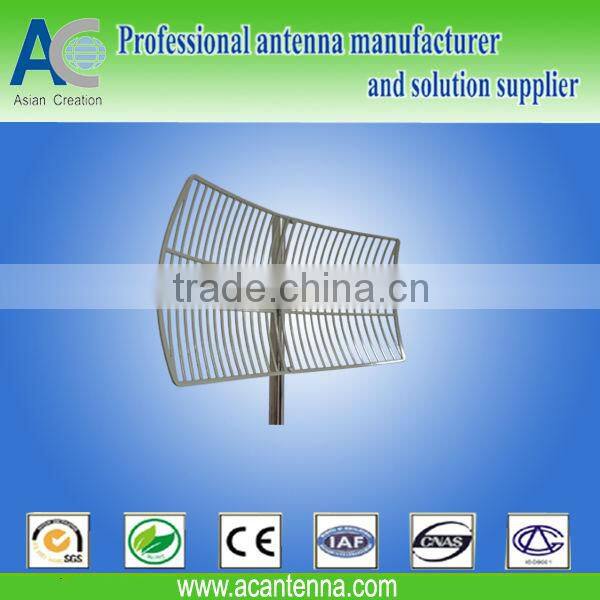

grid lte 700mhz 10dbi antenna 300x400mm
LTE/4GHz Wireless LAN systems
LTE/4GHz UNII/ISM Applications
Long-Range Directional Applications
Point to Point/Point to Multi-point Systems
Wireless Bridges
Backhaul/Client Antenna
Features:
*Superior Performance
*Aluminum Die Cast Grid
*UV Stable Light Gray Powder Coat Finish
*All Weather Operation
* Easy to Assemble
Electrical Specifications | |
Model | AC-D700G0304 |
Frequency Range | 698-755 MHz |
Band width | 57 MHz |
F/B Ratio | >20dB |
Gain | 10Bi |
V.S.W.R | <1.5 |
Radiation | Direction |
Horizontal Beam width | 30° |
Vertical Beam width | 25° |
Polarization | Vertical or horizontal |
Lightning Protection | DC ground |
Maximum Input Power | 200W |
Impedance | 50ohm |
Operating Temperature | -40°C to+85°C |
Antenna Material | Aluminum Alloy |
Connector | N female |
Cable type | LMR400 |
Cable length | 30CM |
Mount way | Pole |
Mechanical Specifications | |
Antenna Dimension | 400*300mm |
Weight | 2.6KG |
Rated Wind Velocity | 60m/s |
