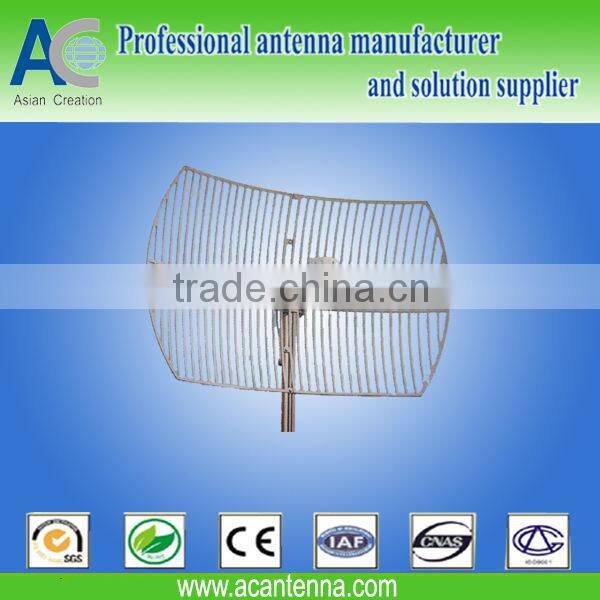

high gain good price parabolic antenna 2.6GHz
LTE/4GHz Wireless LAN systems
LTE/4GHz UNII/ISM Applications
Long-Range Directional Applications
Point to Point/Point to Multi-point Systems
Wireless Bridges
Backhaul/Client Antenna
Features:
*Superior Performance
*Aluminum Die Cast Grid
*UV Stable Light Gray Powder Coat Finish
*All Weather Operation
* Easy to Assemble
Electrical Specifications | |
Model | AC-D26G24 |
Frequency Range | 2500-2700 MHz |
Band width | 83 MHz |
Gain | 24 dBi |
F/B Ratio | ≥30 dB |
Horizontal Beam width | 10° |
Vertical Beam width | 14° |
V.S.W.R | ≤1.5 |
Lightning Protection | DC Ground |
Radiation | Direction |
Polarization | Vertical |
Maximum Input Power | 100W |
Impedance | 50ohm |
Operating Temperature | -40°C to+70°C |
Connector | N female |
Cable Type | LMR400 |
Cable Length | 30 CM |
Mount way | Pole |
Mechanical Specifications | |
Antenna Dimension | 600*900 MM |
Weight | 2.5 KG |
Mounting Mast Diameter | Mast Diameter-mm Ø30~Ø50mm |
Rated Wind Velocity | 60m/s |
