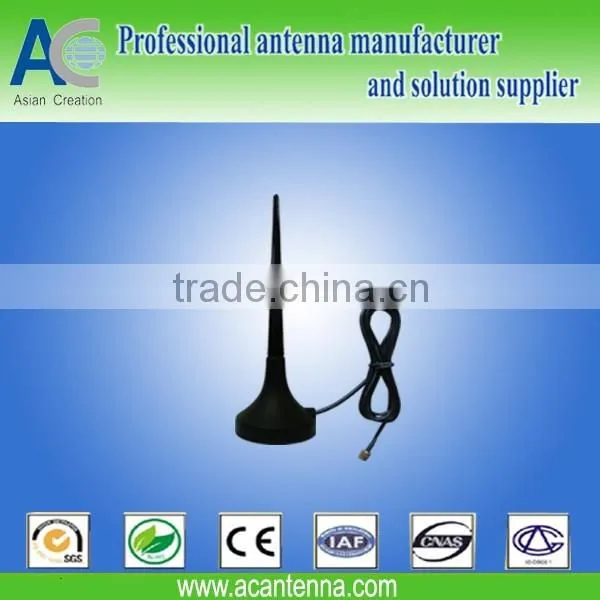

GGSM Mobile Antenna with magnetic base
Applications:
GSM / CDMA mobile terminal design
frequency communication vehicle
of a medium-gain Car Antenna.
Car Antenna paste method using 3M chip,
Features:
antenna, small size,
stable and reliable performance.
Electrical Specifications: | ||
Model |
AC-Q9018I15 |
AC-Q8019I15 |
Frequency Range |
890-960/1710-1880MHz |
824~896/1850-1990MHz |
Gain |
3dBi |
|
VSWR |
≤2.0 |
|
Polarization |
Vertical |
|
Impedance |
50ohm |
|
Maximum Input Power |
50W |
|
Cable type |
RG174 |
|
Length |
3M |
|
Connector |
SMA Male |
|
Operating Temperature |
-40℃ to+80℃ |
|
Mechanical Specifications: | ||
Antenna Dimension |
Φ29×100mm |
|
Weight |
15g |
|
Memo: Above specification subject to change without further notice.Please contact us for more details.
