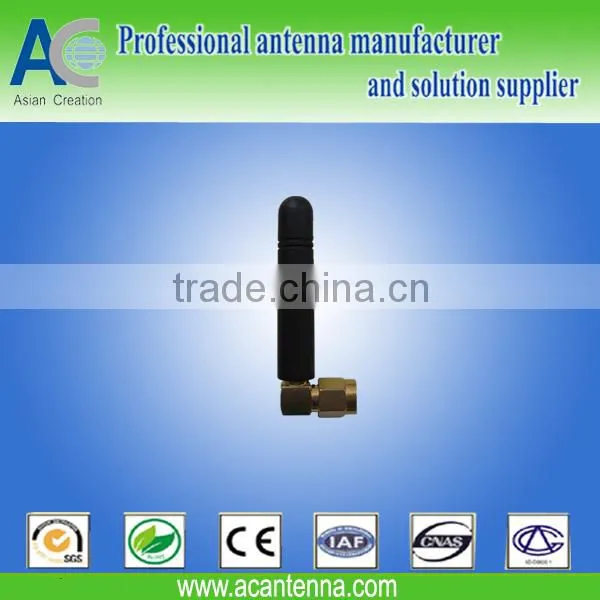

rubber antenna SMA 90 degree stubby antenna for GSM 3g
Applications:
for GSM spread spectrum of communications mobile terminal design of the secondary benefits of anteenna an antenna body. the special rubber in beauty for installing.
Features:
antenna for GSM system of communication terminals. the antenna design of the production structure and beauty for installing.
Electrical Specifications: | |
Frequency Range |
890-960/1710-1880MHz |
Gain |
2.5dBi |
VSWR |
≤1.8 |
Polarization |
Vertical |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
SMA Male |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications: | |
Antenna Dimension |
Φ8×47mm |
Weight |
10g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
