Help CenterGsm Booster Antenna
Related Products

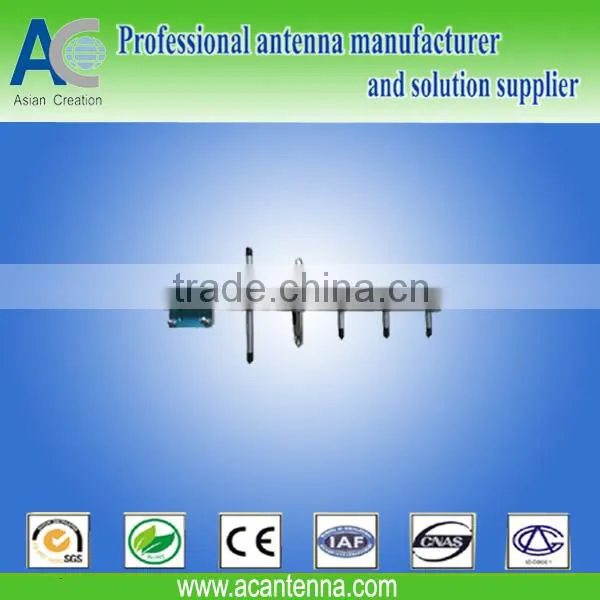

gsm booster antenna
Applications:
mobilecommunication system
Multipoint repeater antenna system
Features:
They are designed for the long distance directional
communication at 1100-1300MHz. They have heavy
duty structure and easy for installation
.
Electrical Specifications | |
Model |
AC-D90Y07-05 |
Frequency Range |
824-960MHz |
Gain |
7dBi |
VSWR |
≤1.5 |
Polarization |
Vertical |
Horizontal Beamwidth |
54° |
Vertical Beamwidth |
48° |
F/B Ratio |
>14dB |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
N Female |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension |
650/800×180mm |
Weight |
1.2kg |
Mounting Mast Diameter |
Ø30~Ø50 mm |
Memo: Above specification subject to change without further notice.Please contact us for more details.
