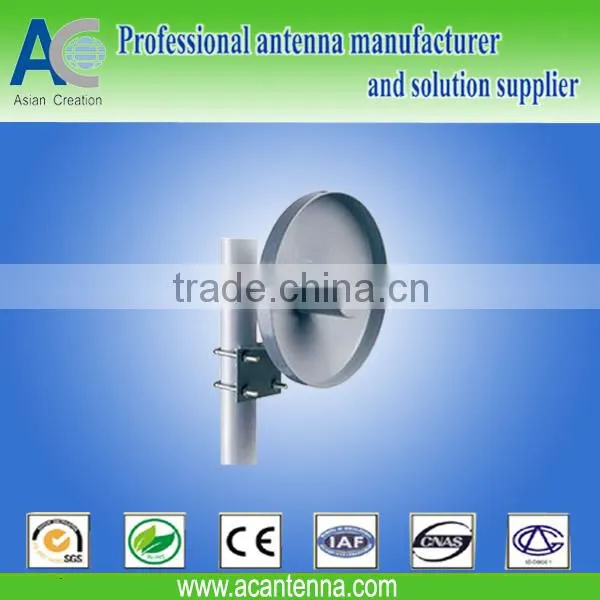

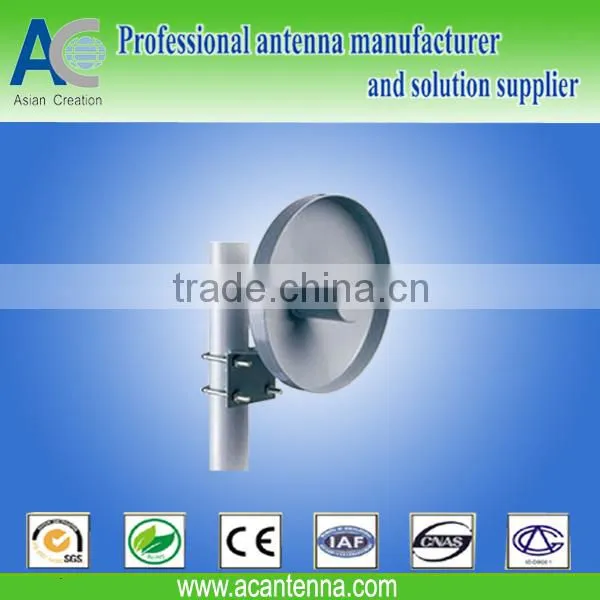

gsm backfire antenna outdoor
Applications:
GSM ISM Band
IEEE 802.11b and 802.11g Wireless LAN
Public Wireless Hotspot
WiFi
Wireless Bridge Antenna
Client Antenna
Features:
High Gain to 12dBi
Small Size, Low Profile
Electrical Specifications | |
Model |
AC-D9016B |
Frequency Range |
824-960MHz |
Band width |
136MHz |
Gain |
12dBi |
V.S.W.R |
≤1.5 |
Radiation |
Directional |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+70℃ |
Connector |
N Female |
Cable Length |
/ |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
Φ260mm |
Weight |
1.85kg |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
