Home > Products > GSM Antennas > Interface cable
Interface cable
- 100000 Piece / Pieces per Month
- Foshan
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AC | Model Number: | AC-U.FL-U.FL |
Packaging Details
10000 pieces/carton
Product Description
internal antenna

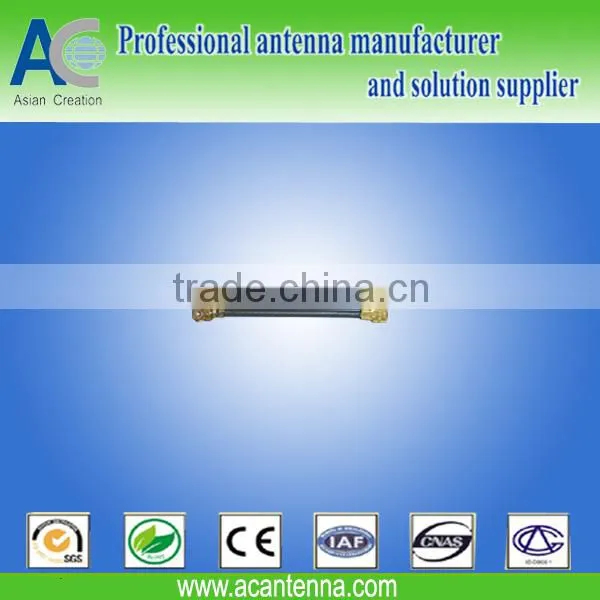

Interface cable
ⅠElectrical Specifications | |
Model | AC-U.FL-U.FL |
Frequency Range | DC to 6GHz |
Connector | IPX to IPX |
Cable type | 1.37/1.13/RG178 CABLE |
Cable length | 100mm(can be customized) |
Impedance | 50ohms |
Temperature | -40℃ to +85℃ |
Rated Voltage | AC 60V |
Contact Resistance | 20m ohm max-signal and ground |
Withstand Voltage | AC 200V |
Insulation Resistance | 500M ohm minimum/DC 100V |
VSWR | <1.5:1 |
Memo: Above specification subject to change without further notice.Please contact us for more details.
Our Factory:
Certificate:
The scene of HK global Sources exhibition :
Payment item and Delivery Ways:
Company Profile
Asian Creation Communication co.,Ltd is a Professional Antenna Manufacturer in China, established in 2001. Based on a 5000 square metre site, Asian Creation have 110 employees ,now we has 6 engineers, 5 senior technicians and a regular company structure.
Asian Creation Communication Equipment Factory is a hi-tech enterprise specialized in the development and production of communication antennas; our leading portfolio are the high quality antenna products, including wlan antenna, wifi antenna, wimax antenna, wireless antenna, MIMO antenna, UHF/VHF antenna, GSM/UMTS/AMPS antenna, 2.4GHz antenna, 5.8GHz antenna, LTE antenna, 3G antenna, DVB antenna, GPS antenna, RFID antenna, etc.. We also supply a full range of antenna components: power splitters, couplers, surge protectors, router enclosure etc.
To guarantee the quality and deliver time,our company have 8 production lines and uses advanced testing equipment, such as HP87 network analyzer, frequency spectrum analyzer, standard microwave anechoic chamber, antenna near field-testing After 5 years of development, our existing distributors located in the United States, Lebanon, Israel, Germany, Italy.etc. . System and far field automatic testing systems amongst other standard testing equipments.
Our manufacturing standards of wlan antenna, wifi antenna and wimax antenna conform to ISO9001:2000. The strong growth of our wlan antenna, wifi antenna and wimax antenna products in the communication area demonstrate our commitment to strict quality management standards, first class equipment performance professionals providing technical support and efficient after services to all our customers.
