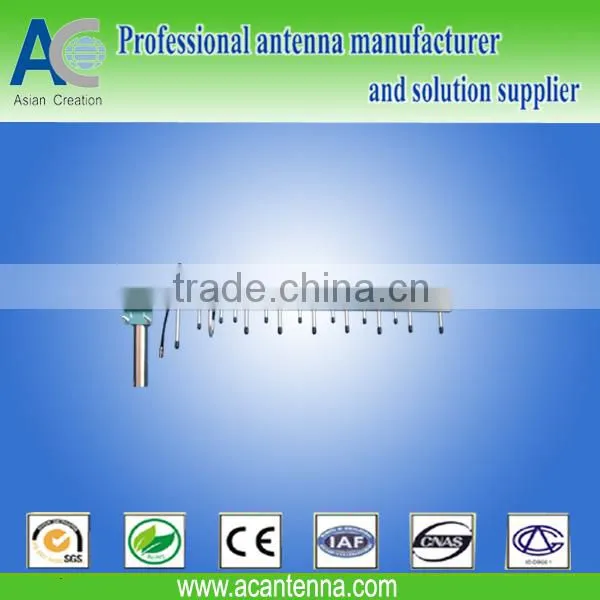

Yagi antenna 40 elements
Applications:
mobilecommunication system
Multipoint repeater antenna system
Features:
They are designed for the long distance directional
communication at 1100-1300MHz. They have heavy
duty structure and easy for installation
.
Electrical Specifications | |
Model |
AC-D90Y12-12 |
Frequency Range |
890- 960/1850-1990MHz |
Band width |
70/140 MHz |
Gain |
12 dBi |
F/B Ratio |
>18 dB |
V.S.W.R |
≤1.5 |
Radiation |
Direction |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+70℃ |
Connector |
N female |
Cable Length |
30cm |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
910x190mm |
Weight |
1.2KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
