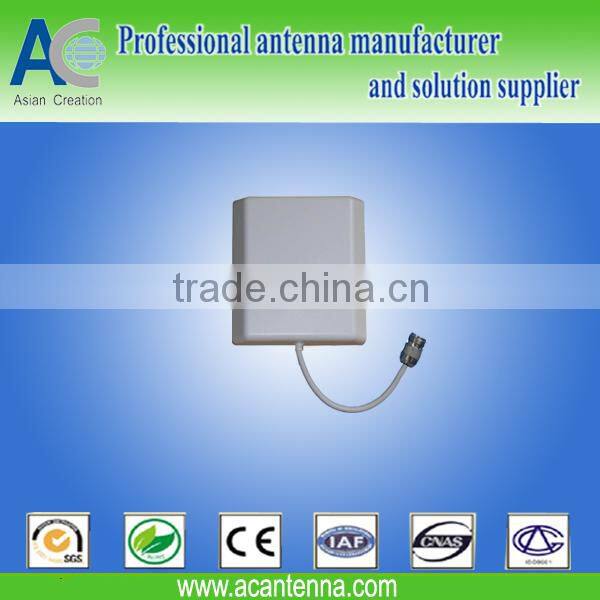

video security antenna
Applications:
GSM UNII / ISM system l
point to point on the multi-application
support IEEE802.11a/b/g
Features:
high gain and low VSWR with dual technology design
compact antenna structure, beautiful appearance for
indoor use, environmental adaptability wall mount
Electrical Specifications | |
Model | AC-DGC-W08 |
Frequency Range | 800-960/1710-2500 MHz |
Gain | 7/10dBi |
VSWR | ≤1.5 |
Polarization | Vertical or Horizontal |
Horizontal Beamwidth | 70° |
Vertical Beamwidth | 55° |
Impedance | 50ohm |
Maximum Input Power | 50W |
Connector | N Female |
Operating Temperature | -40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension | 207×180×45mm |
Weight | 500g |
Mounting Mast Diameter | Ø30~Ø50 mm |
Memo: Above specification subject to change without further notice.Please contact us for more details.
