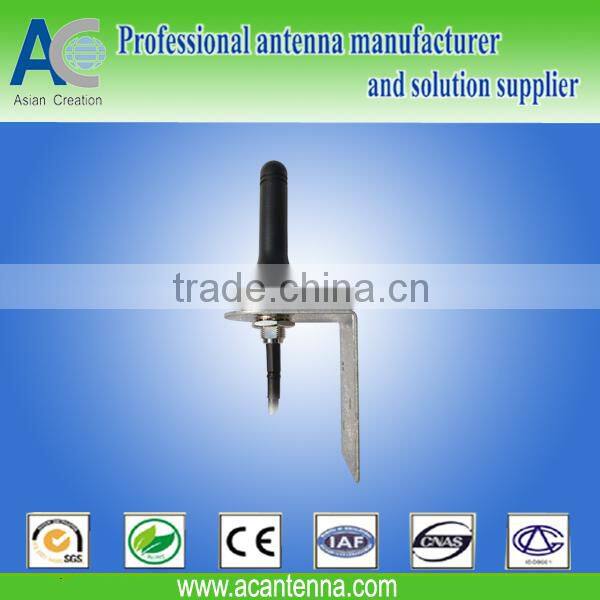

bracket mount antenna
Applications:
AP Antenna is designed for the GSM/CDMAspread spectrum communication system.
After optimizing the design and tuning carefully, it has good VSWR.
Features:
The small dimension and light structure make it easy to install.
It also has good shockproof and anti-aging performance
Electrical Specifications | |
Model | AC-Q9018-LZ |
Frequency Range | 890-960/1710-1880MHz |
Band width | 70/ 170MHz |
Gain | 3dBi |
V.S.W.R | ≤2.0 |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50ohm |
Operating Temperature | -40℃ to+70℃ |
Connector | SMA Male |
Cable Length | 80CM |
Mount way | Bracket mounting |
Mechanical Specifications | |
Antenna Dimension | Φ30×81mm |
Weight | 80g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
