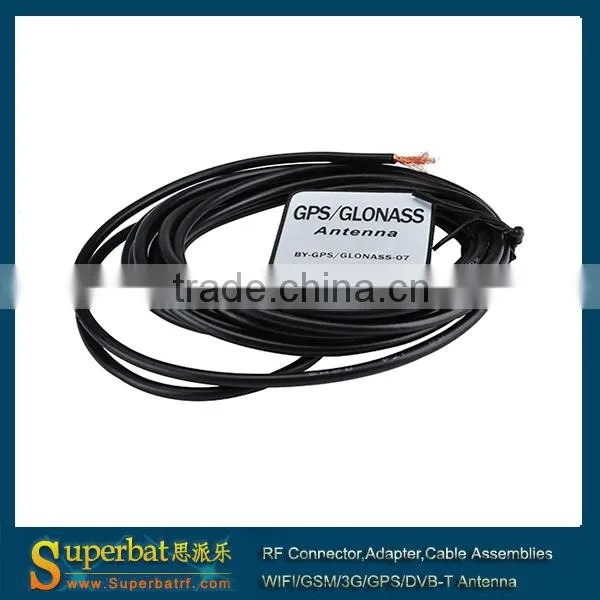

Mini GPS Antenna SMA Plug connector for Glonass/Russian GLONASS
Model : GA15-300-S01SP
i)Dielectric Antenna
Frequency 1575MHZ/1602MHz
Center Frequency: 1590MHz
V.S.W.R 1.5:1
Band Width 50 MHz Min. at -10dB
Impendence 50 ohm
Peak Gain : 5dBic Min/1575MHz. 4dBic Min/1602~1616MHz
Gain Coverage:≥- 4dBic at -90°~90°(over75% volume)
Power Handling : 1 watt
Polarization : RHCP
(ii)LNA
LNA Gain(Without cable) 32dB Typical
Noise Figure 1.5dB
V.S.W.R :2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 11mA Max
(iii)Mechanical
Weight :110gram
Size 37×33.5×10mm

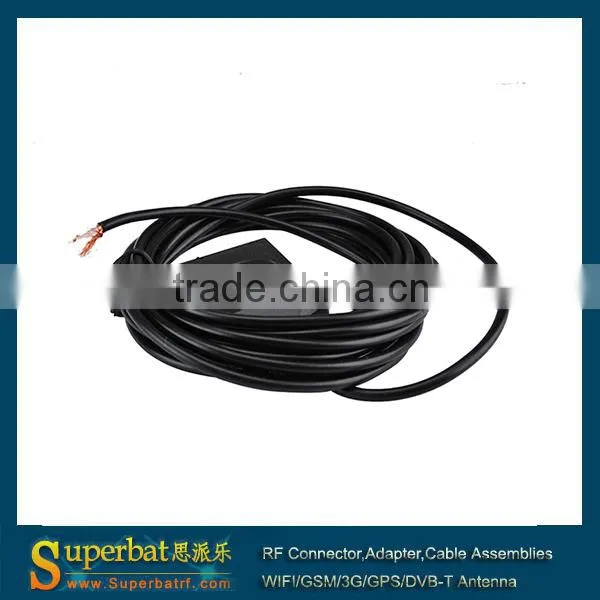

Cable RG174 3meters or other

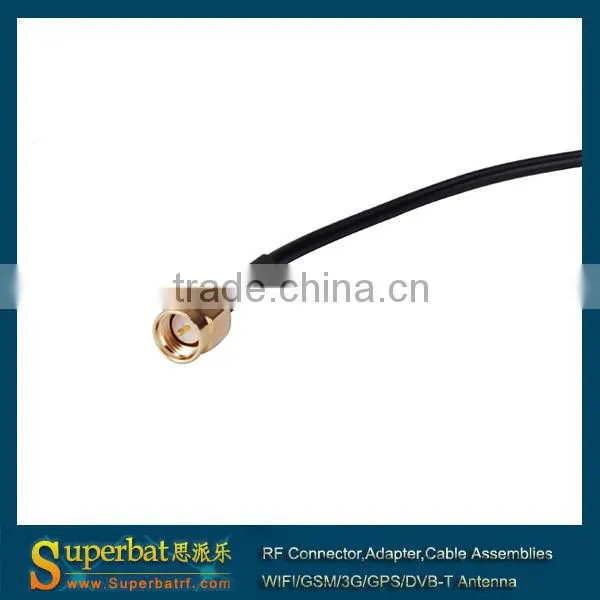

Connector :SMA Plug default SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
If you need other connectors,please contact us, customize is available.
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
Here are some GPS antenna connectors we could customize with :

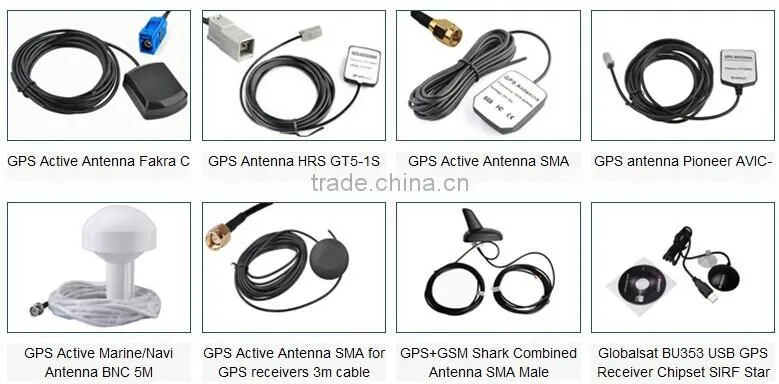

Other GPS Antennas we have :

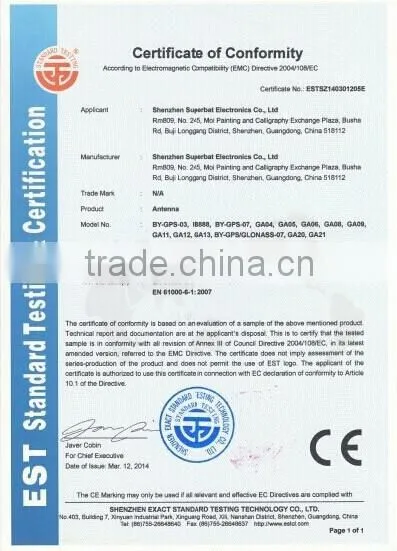

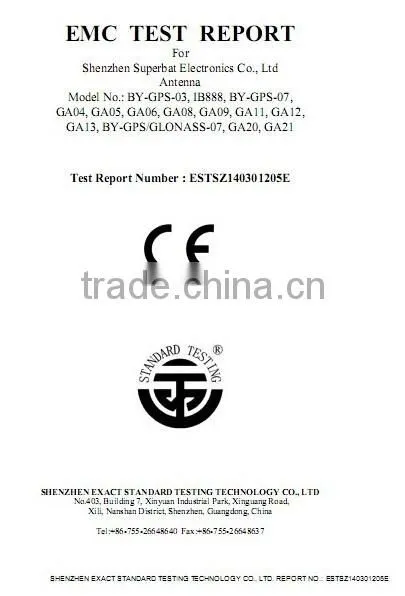

Good quality & certificated by CE :
|
|
SHIPPING
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
5. Sample is available.
PAYMENT WAY
We accept T/T, Western Union, Escrow and Paypal.
WARRANTY
1. We can guarantee the product quality within 3 months .
2. If products cannot work,refund or exchange is available.
We provide comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
We specialises in the sale of RF coaxial connectors,adapters, cable assemblies,3G/GSM/WIFI/GPS antennas etc, and especially provides custom services for these products. we own the "Xtar" and "superbat" trademark.
We own a mature and professional Sales Team and Technical Team,and set up a good and long-term relationship with over 50 domestic manufactures of coaxial connector and antenna.We have served for over 86000 customers from more than 120 countries on ebay, alibaba and our online shop.We have achieved great admiration and we are widely trusted at home and abroad.
Our mission is : Provide an Internet-based integrated supply chain for small and medium-sized users and retailers of RF and microwave components in the world.
