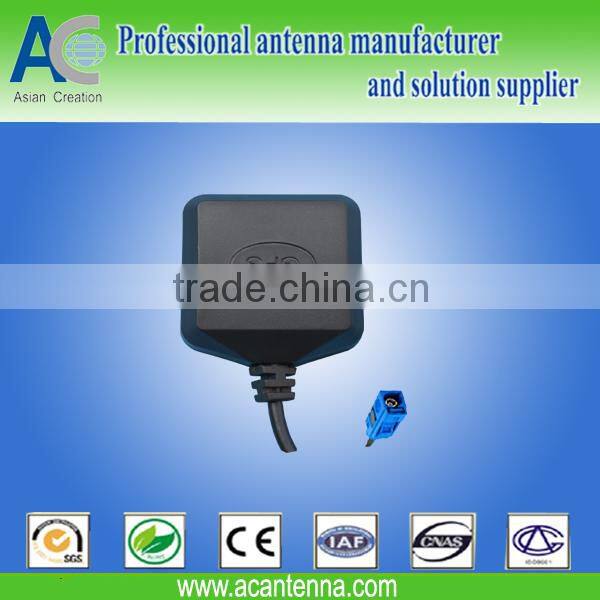

GPS Antenna with Magnetic Mount SMA Connector
Applications:
For GPS System, Active Antenna, Made of Ceramic
Microstrip Substrate Compact Size, Light Weight,
Low Profile, Easy to Assemble and Hide
The high gain LNA is made of low noise microwave
components to ensure the sensibility of the system
Features:
Work GPS Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
Electrical Specifications: | |
Model | AC-GPS-01 |
Center Frequency | 1575.42MHZ±3 MHz |
Band Width | ±5 MHz |
V.S.W.R | 1.5:1 |
Polarization Type | RHCP |
Impedance | 50 ohm |
LNA Gain | 10~30 dB Typical |
Noise Figure | 1.5dB |
DC Voltage | 2.2-5.0V |
DC current | 5-15mA |
Housing | Black |
Cable | RG174 |
Length | 3 M |
Connector | FAKRA Male |
Working Temp | -40°C~+85°C |
Humidity | 55%-75%RH |
Waterproof | IP67 |
Mechanical Specification | |
Size | 38x34x13.5mm |
Weight | 60g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
