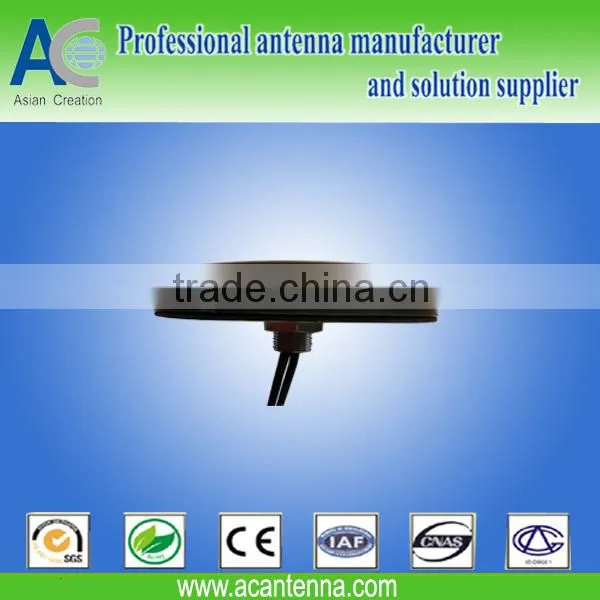

car antenna installation digital antenna for car
Applications:
Vehicle gps navigation
Features:
Work GPS Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
Electrical Specifications: | |
Center Frequency | 1575.42MHZ±3 MHz |
Band Width | ±5 MHz |
V.S.W.R | 1.5:1 |
Polarization Type | RHCP |
Impedance | 50 ohm |
LNA Gain | 30dB Typical |
Noise Figure | 1.5dB |
DC Voltage | 2.2-5.0V |
DC current | 5-15mA |
Frequency range | 824~894MHz/ 880MHz~960MHZ,1710MHz~1990MHz |
VSWR | 2.0:1 |
Gain | 2dBi |
Housing | Black |
Cable | RG174 |
Length | 3 M |
Connector | SMA Male |
Working Temp | -40°C~+85°C |
Humidity | 55%-75%RH |
Waterproof | IP67 |
Mechanical Specification | |
Size | Φ80×14.5 mm |
Weight | 230g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
