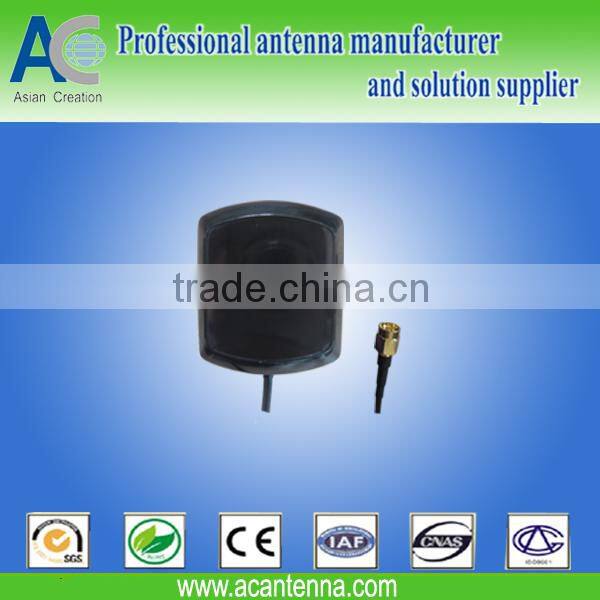

2 in 1 High Performance Adhesive Mount Combination Antenna
(i)Dielectric Antenna | |
Frequency |
1575MHZ/1602MHz |
Center Frequency |
1590MHz |
V.S.W.R |
1.5:1 |
Band Width |
50 MHz Min. at -10dB |
Impendence |
50 ohm |
Peak Gain |
5dBic Min/1575MHz 4dBic Min/1602~1616MHz |
Gain Coverage |
≥- 4dBic at -90°~90°(over75% volume) |
Power Handling |
1 watt |
Polarization |
RHCP |
(ii)LNA | |
LNA Gain(Without cable) |
32dB Typical |
Noise Figure |
1.5dB |
V.S.W.R |
<2.0 |
DC Voltage |
2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other |
DC Current |
11mA Max |
(iii)Mechanical | |
Weight |
<110gram |
Size |
49×39×15mm |
Cable |
RG174 3meters or other |
Connector |
SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other |
Mounting |
Magnetic base |
Housing |
Black |
(iv)Environmental | |
Working Temp |
-40℃~+85℃ |
Storage Temp. |
-45℃~+100℃ |
Vibration |
Sine sweep 1g(0-p)10~50~10Hz each axis |
Humidity |
Humidity95%~100%RH |
Weatherproof |
IP67 |
Memo: Above specification subject to change without further notice.Please contact us for more details.
