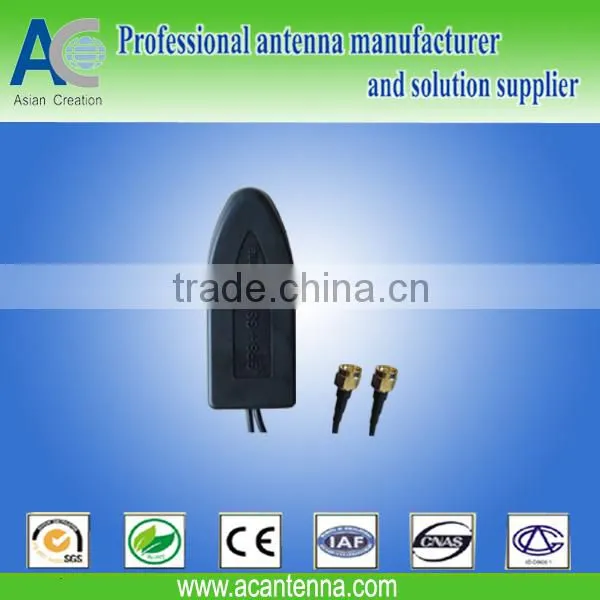

combination combo GPS GSM antenna with 3m cable magnetic or sticker
Features:
all weather Anodized Aluminum construction
Can be installed for either vertical or
horizontal polarization
Solid Aluminum elements
Heavy duty mounting hardware
Applications :
Suited for LTE band
700/750MHz WIMAX lower band
Point to Multipoint applications
Electrical Specifications: | |
Center Frequency |
1575.42MHZ±3 MHz |
Band Width |
±5 MHz |
V.S.W.R |
1.5:1 |
Polarization Type |
RHCP |
Impedance |
50 ohm |
LNA Gain |
30dB Typical |
Noise Figure |
1.5dB |
DC Voltage |
2.2-5.0V |
DC current |
5-15mA |
Frequency range |
824~894MHz/ 880MHz~960MHZ,1710MHz~1990MHz |
VSWR |
2.0:1 |
Gain |
2dBi |
Housing |
Black |
Cable |
RG174 |
Length |
3 M |
Connector |
SMA Male |
Working Temp |
-40℃~+85℃ |
Humidity |
55%-75%RH |
Waterproof |
IP67 |
Mechanical Specification | |
Size |
96×36×15 mm |
Weight |
230g |
