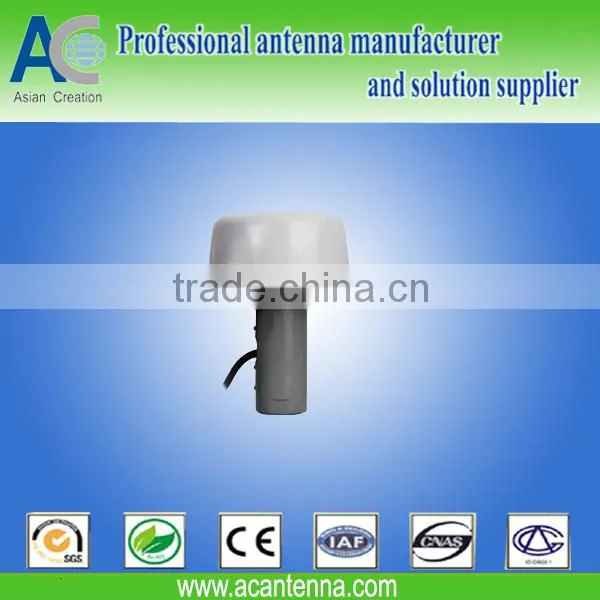

GPS Active Navigation marine vhf antenna
Applications:
Vehicle gps navigation
Features:
Work GPS Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
Electrical Specifications | |
Model |
AC-GPS-13 |
Frequency Range |
1575.42MHZ±3 MHz |
Band width |
±5 MHz |
LNA Gain |
28,38,52dB |
Noise Figure |
1.5 dB |
DC Voltage |
2.2-5.0V |
DC current |
5-15mA |
DC current |
White |
V.S.W.R |
1.5 : 1 |
Radiation |
Omni-direction |
Polarization |
RHCP |
Impedance |
50ohm |
Operating Temperature |
-40℃~+85℃ |
Connector |
SMA Male |
Cable Type |
RG58U |
Cable Length |
3 M |
Humidity |
-40℃~+85℃ |
Waterproof |
IP67 |
Mount way |
Screw |
Mechanical Specifications | |
Antenna Dimension |
Ø93.5×133mm |
Weight |
100 G |
Memo: Above specification subject to change without further notice.Please contact us for more details.
