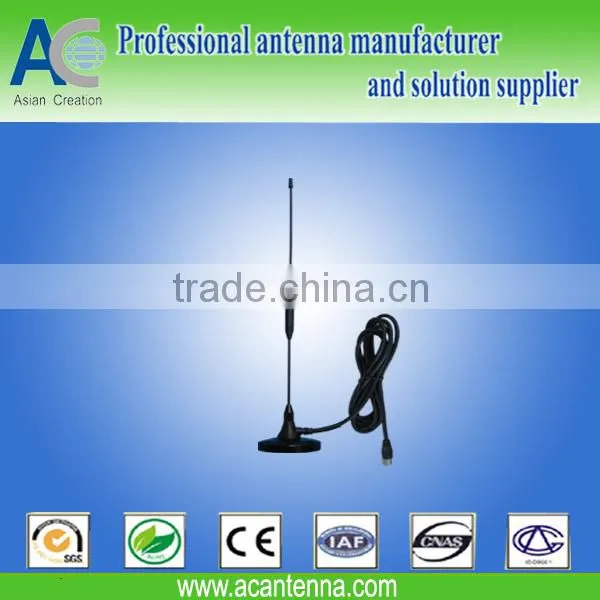

dvb-t TV digital magnetic VHF antenna
Applications:
The antenna has high gain, wide frequency band,
interferenceresistance, plastic molding method,
high-strength magnet and crimp into one feeder,
antenna size, light weight, stable performance,
reliable, convenient installation.
Features:
Use a frequency :VHF174-230/UHF470-862MHZ
Digital tv signals to enhance mobile
Electrical Specifications: | |
Mode | AC-DVB-T09 |
Frequency Range | VHF174-230MHz/UHF470-862MHz |
Gain | 5dBi |
VSWR | ≤2.0 |
Polarization | Vertical |
Impedance | 75ohm |
Maximum Input Power | 50W |
Connector | IEC male |
Mechanical Specifications: | |
Line long | 3M |
Styles | RG58U |
Antenna Dimension | Φ65×380mm |
Weight | 100g |
Operating Temperature | -40℃ to+80℃ |
Memo: Above specification subject to change without further notice.Please contact us for more details.
