Specifications
tv digital antenna vhf magnetic antenna antenna TV1.Freq:174-230MHz/470-862MHz
2.Gain:3dBi
3.Size:30*110mm
tv digital antenna vhf magnetic antenna antenna TV
Applications:
The antenna has high gain, wide frequency band,
interferenceresistance, plastic molding method,
high-strength magnet and crimp into one feeder,
antenna size, light weight, stable performance,
reliable, convenient installation.
Features:
Use a frequency :VHF174-230/UHF470-862MHZ
Digital tv signals to enhance mobile
Electrical Specifications: | |
Mode |
AC-DVB-T06 |
Frequency Range |
VHF174-230MHz/UHF470-862MHz |
Gain |
2.5dBi |
VSWR |
≤2.0 |
Polarization |
Vertical |
Impedance |
75ohm |
Maximum Input Power |
50W |

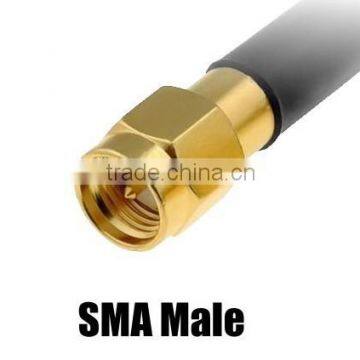

Connector |
SMA Male |
Mechanical Specifications: | |
Line long |
3M |
Styles |
RG174 |
Antenna Dimension |
Φ30×110mm |
Weight |
38g |
Operating Temperature |
-40℃ to+80℃ |
Memo: Above specification subject to change without further notice.Please contact us for more details.
