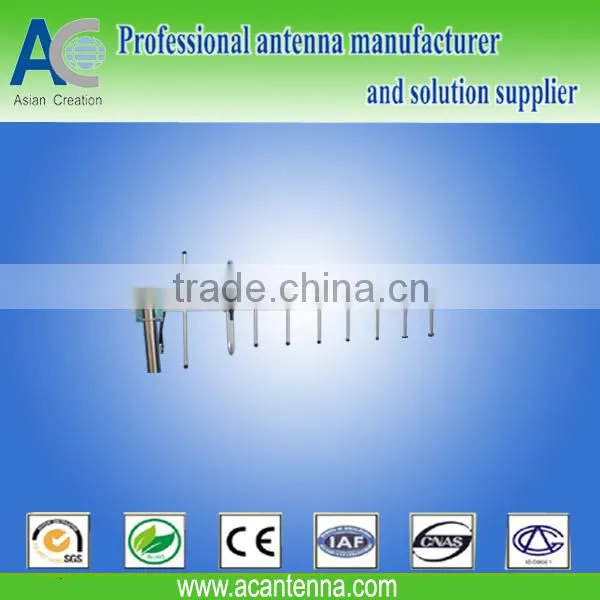

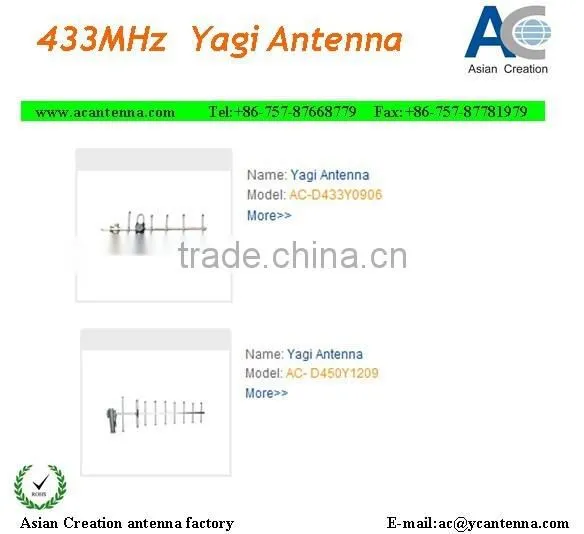

outdoor aluminium alloy yagi UHF 433mhz VHF 315mhz directional antenna
Features:
High Gain, Low VSWR Stable Performance, Strong Adaptability of Environment
Electrical Specifications | ||
Model |
AC-D433Y12-09 |
AC-D315Y12-09 |
Frequency Range |
433MHz |
315MHz |
Bandwidth |
±3MHz |
|
Gain |
12dBi |
|
VSWR |
≤2.0 |
|
Polarization |
Vertical |
|
Horizontal Beamwidth |
44° |
|
Vertical Beamwidth |
40° |
|
Impedance |
50ohm |
|
Maximum Input Power |
50W |
|
Connector |
N Female |
|
Operating Temperature |
-40℃ to+80℃ |
|
Mechanical Specifications | ||
Antenna Dimension |
1300×375×80mm |
|
Weight |
2kg |
|
Memo: Above specification subject to change without further notice.Please contact us for more details.
