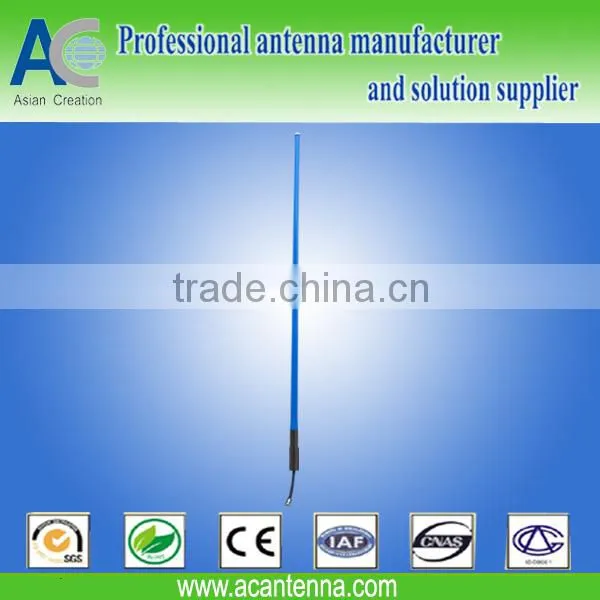

Omni Directional folded dipole antenna
Applications:
* 136-174MHz Band
* Point to Multipoint
* Wireless Video System
* Wireless TETRA System
Features:
*Broad Band
* Electrical Downtilt 0 Degree
* Sealed with Fiberglass
* All Weather Operation
* Heavy-duty Steel Mounting
Electrical Specifications | |
Model |
AC-Q155F06 |
Frequency Range |
136-174MHz |
Band width |
36MHz |
Gain |
6dBi |
Vertical Beam width |
25° |
V.S.W.R |
≤1.5 |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+70℃ |
Connector |
N Female |
Cable Length |
30cm |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
Φ38×2300mm |
Weight |
4KG |
Memo: Above specification subject to change without further notice.Please contact us for more details.
