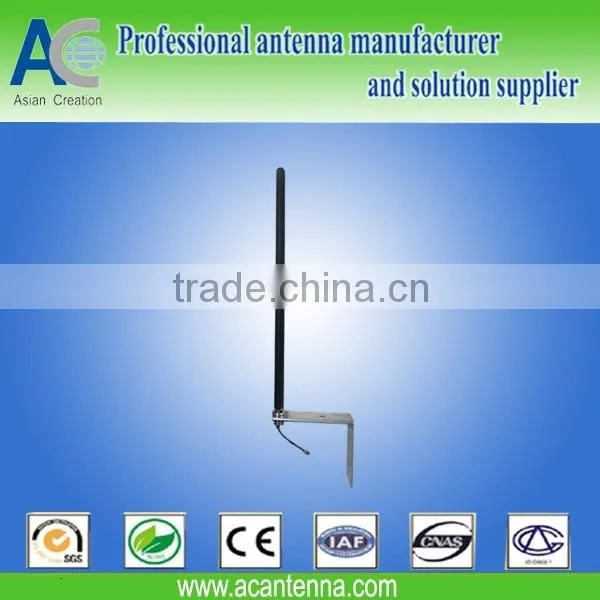

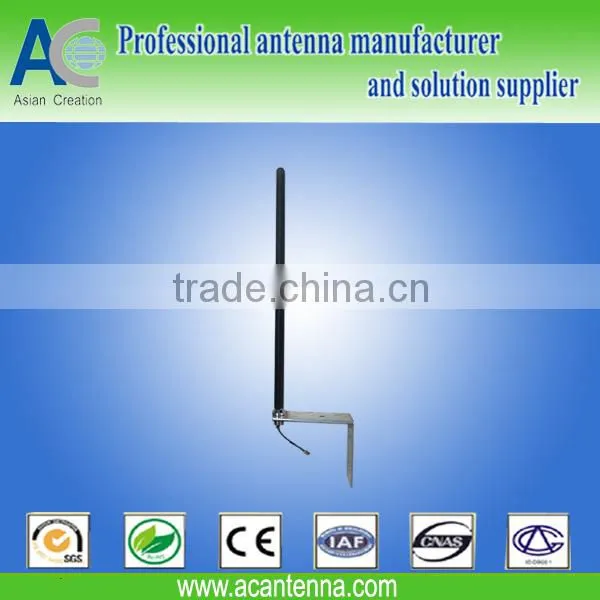

433/315MHz AP rubber terminal antenna
Applications:
AP Antenna is designed for 433MHZ as pread spectrum communication system.
After optimizing the design and tuning carefully, it has good VSWR.
The small dimension and light structure make it easy to install.
It also has good shockproof and anti-aging performance.
Electrical Specifications: | ||
Model |
AC-Q433I25B |
AC-Q315I25B |
Frequency Range |
433MHz |
315MHz |
Gain |
3.5dBi |
|
VSWR |
≤2.0 |
|
Polarization |
Vertical |
|
Maximum Input Power |
50W |
|
Impedance |
50ohm |
|
Cable type |
RG174 |
|
Length |
30CM |
|
Connector |
SMA Male |
|
Mechanical Specifications: | ||
Antenna Dimension |
Φ11×270mm |
|
Weight |
30g |
|
Memo: Above specification subject to change without further notice.Please contact us for more details.
