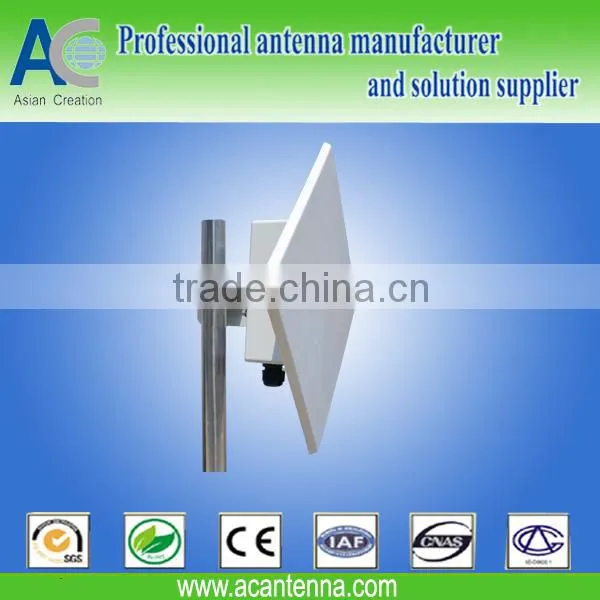

2.4GHz Antenna Indoor Panel
Applications:
2.4G Communication System
Support IEEE802.11a
Point to point, point to multipoint
Features:
High gain, High F/B ratio
Low profile, Small size, Light weight
Dual polarization operation
Integrated enclosure, with pigtail
With customer mounting plate
ⅠElectrical Specifications | |
Model |
AC-D24W21-55 |
Frequency Range |
2400-2500 MHz |
Band width |
100 MHz |
Gain |
21 dBi |
F/B Ratio |
≥25 dB |
Horizontal Beam width |
12° |
Vertical Beam width |
9° |
V.S.W.R |
≤1.5 |
Lightning Protection |
DC Ground |
Radiation |
Direction |
Polarization |
Vertical |
Maximum Input Power |
100W |
Impedance |
50Ω |
Operating Temperature |
-45°C to+80°C |
Connector |
N female |
Cable Type |
-- |
Cable Length |
-- |
Mount way |
Pole |
Π Mechanical Specifications | |
Antenna Dimension |
550*550 MM |
Weight |
3.6 KG |
Mounting Mast Diameter |
Ø30~Ø50mm |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
