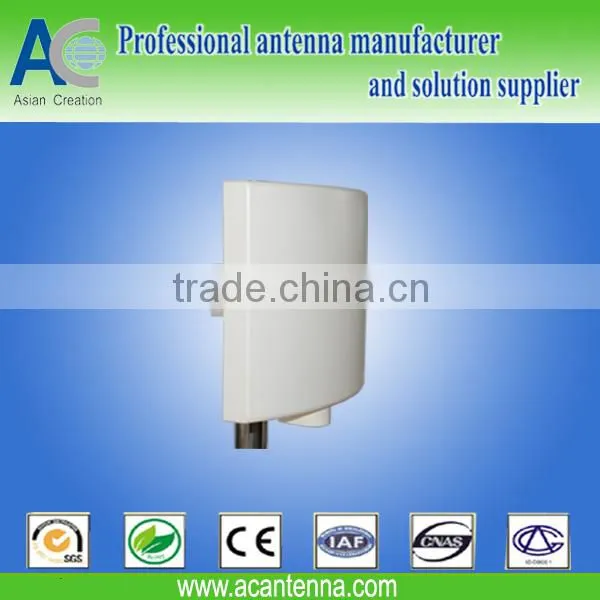

2.4G Wireless Outdoor Panel Antenna
Applications:
2.4G Communication System
Support IEEE802.11a
Point to point, point to multipoint
Features:
High gain, High F/B ratio
Low profile, Small size, Light weight
Dual polarization operation
Integrated enclosure, with pigtail
With customer mounting plate
Electrical Specifications | |
Model |
AC-D24V14 |
Frequency Range |
2400-2483MHz |
Gain |
14dBi |
VSWR |
≤1.5 |
Polarization |
Vertical |
Horizontal Beamwidth |
45° |
Vertical Beamwidth |
30° |
Impedance |
50ohm |
Maximum Input Power |
100W |
Connector |
N Female |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension |
250*220*55mm |
Weight |
0.65kg |
Mounting |
Mast Diameter-mm Ø30~Ø50 |
Rated Wind Velocity |
241 Km/h |
Memo: Above specification subject to change without further notice.Please contact us for more details.
