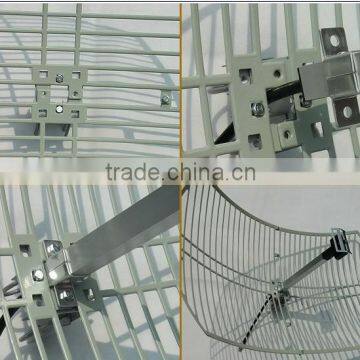

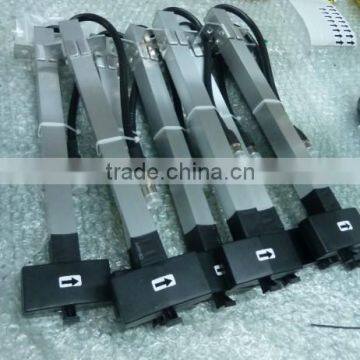

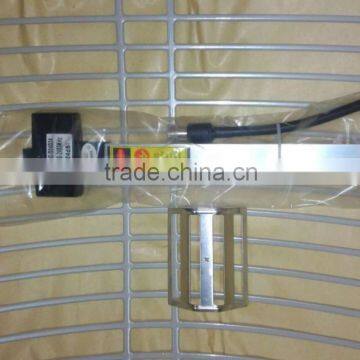

Wireless data communication products antenna
Applications:
2.4GHz Wireless LAN systems
2.4GHz UNII/ISM Applications
Long-Range Directional Applications
Point to Point/Point to Multi-point Systems
Wireless Bridges
Backhaul/Client Antenna
Features:
*Superior Performance
*Aluminum Die Cast Grid
*UV Stable Light Gray Powder Coat Finish
*All Weather Operation
* Easy to Assemble
Electrical Specifications | |
Model |
AC-D24G24 |
Frequency Range |
2400-2483 MHz |
Band width |
83 MHz |
Gain |
24 dBi |
F/B Ratio |
≥30 dB |
Horizontal Beam width |
10° |
Vertical Beam width |
14° |
V.S.W.R |
≤1.5 |
Radiation |
Direction |
Polarization |
Vertical |
Maximum Input Power |
100W |
Impedance |
50ohm |
Operating Temperature |
-40°C to+70°C |
Connector |
N female |
Cable Length |
30CM |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
600*900MM |
Weight |
2.5KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
