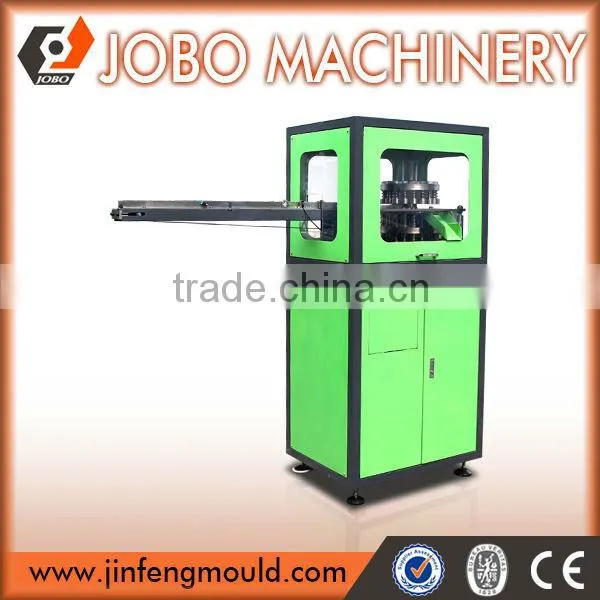

Water bottle lid folding machine for cap making machinery

 2.  Specifications

• Type: JF-27
• Cap diameter: 20-65 mm
• Cap height: 10-30 mm
• Capacity(Sync to Compression Molding Machine): 9200-24000 pcs/hr
• Installed electrical power: 1KW
• Total power: 0.7KW
• Supply voltage: 220V,50Hz
• Compressed air consumption: up to 600N1/min
• Machine weight: 150 KG
• Machine size: 1620mm×550mm×1650mm

JOBO MACHINERY remarks :
The above configuration is only for your reference, particular configuration will be confirmed according to customers' actual needs.

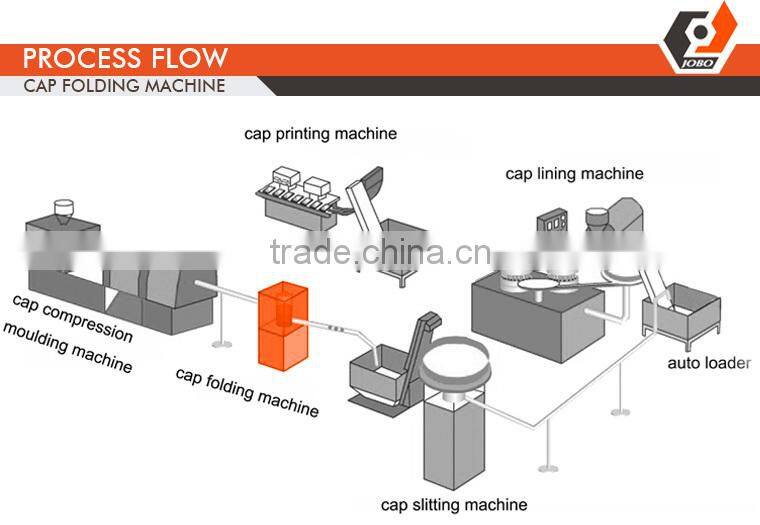

 3.  Process Flow

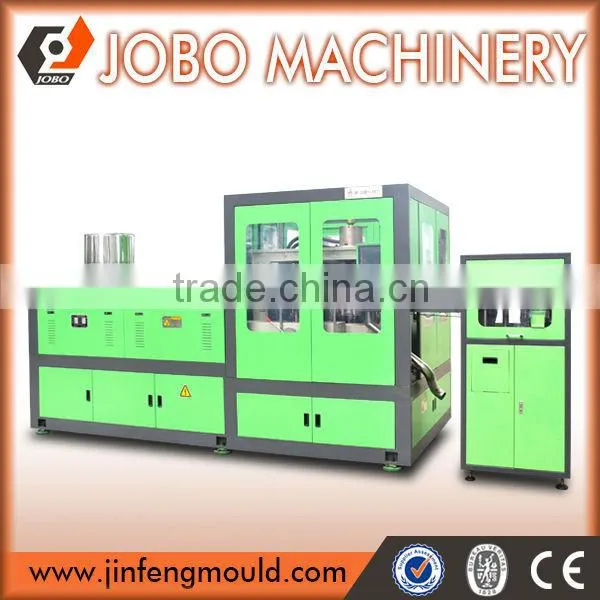

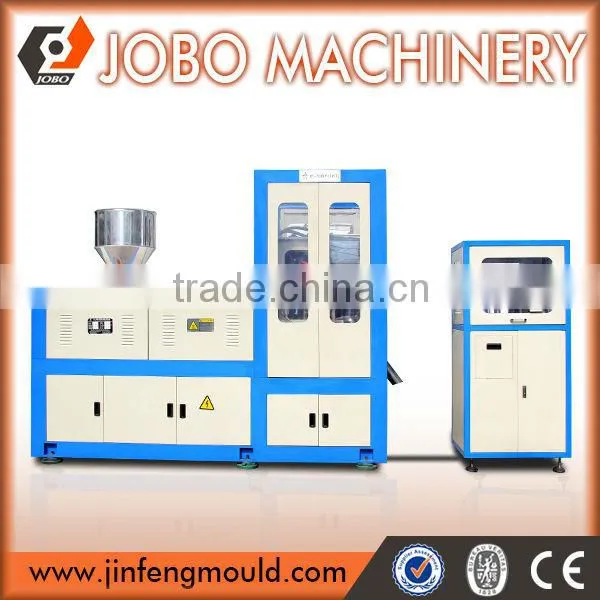

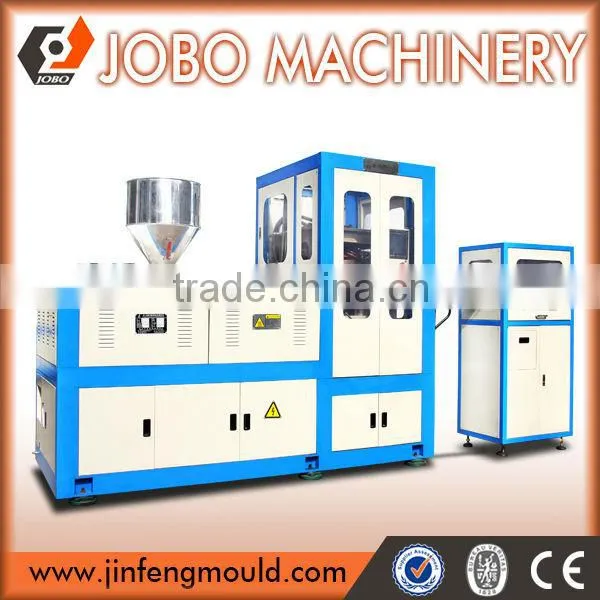

The company has successfully developed different specification of hydraulic cap compression molding machine,

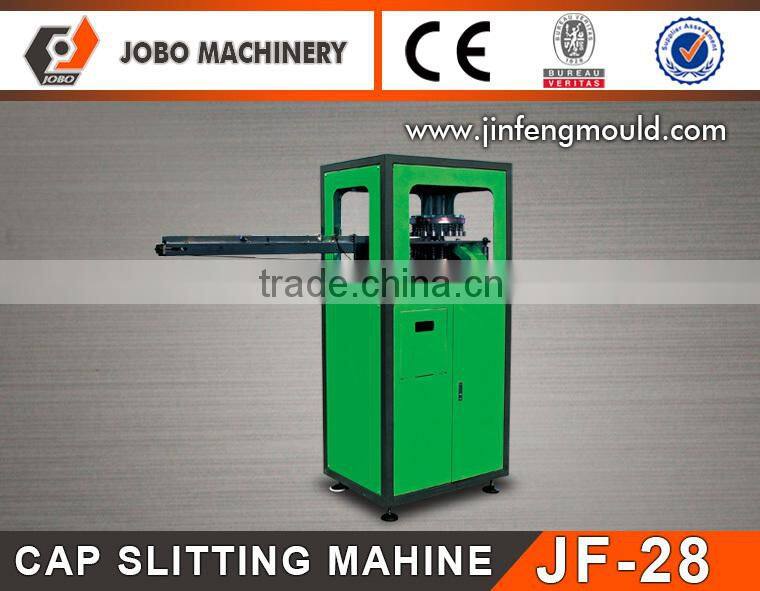

attaching cap folding machine,automatic cap slitting machine and automatic cap lining machine .
The type of JF-30BY hydraulic bottle cap molding machine has applied for national patent.

After many years of production practice, the company qiaobo accumulated the rich cap machinery manufacturing experience.
In order to make the ‘made in JOBO’ become the industry benchmark,
the company has invested a lot of money and equipped with advanced mechanical processing equipment,
imported and cultivated the professional and technical personnel. Actively improved the production technology and made continuous innovation.

 4.  Company Introduction

Taizhou Jobo Machinery Mould Co., Ltd. is located in the East China Sea, which is the renowned land of orange in the country
and the hometown of mould. Ningbo port in the north, the south according to Huangyan airport,
the transportation of the company is convenient for highway and railway. The company got a total investment of $3 million,
and covers an area of ten thousand square meters. The company's product marketing structure is mainly for export.
At present, the product have good sales in more than twenty countries, such as the middle east, Africa, the Americas and so on,
and enjoy good public praise and reputation in worldwide.

The company adheres to the business philosophy of
“Honesty pragmatic, Quality first, Customer focus, Beyond the ordinary.”
According the request of different customer, the company provides a full range services of design, product,
commissioning and after-sale technical support.
We warmly welcome friends both at home and abroad to negotiate. Sincerely hope to establish good,
reliable and stable relations of cooperation with every customer, and got common development!

We can manufacture multicavity injection mold with cold(hot) runner according to your requirement or sample,especially injection cap mold and preform mold.
Welcome to visit our factory,sincerely hope to cooperate with you.
Material of cap mould:
1- Cores & cavities:stainless steel 2316 or S136,or according to customers demand.Hardness:55-60
2- Sleeves stainless steel 2316 or S136,or according to customers demand.Hardness:HRC55-60
3- mould base:imported P20,treated by nitiding.Hardness:38-40degree
4- Heat treatment hardness:HRC50-60
5- Number of cavities:Multi-cavity
6- Slide block:H13,or according to customers demand.
7- Oprating life:at least 3 million shot times
8- Customer service: one year free warranty, life-long technical support service.
Advocating high quality products and efficient quality customer service is our source of development and foundation of existence.
Hot runner system:Hot runner system made by our own factory.or according to customers demand.
We cooperate with many famous suppliers of hot runner system.
Sincerely hope to cooperate with you.
