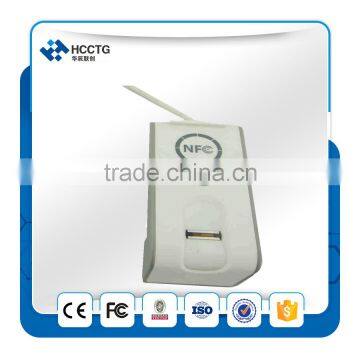

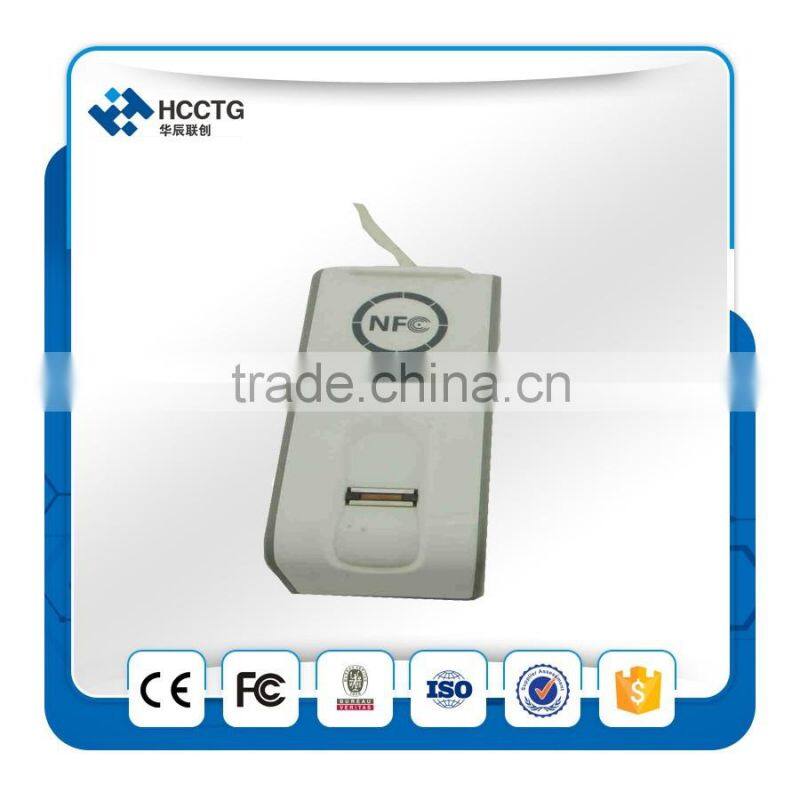

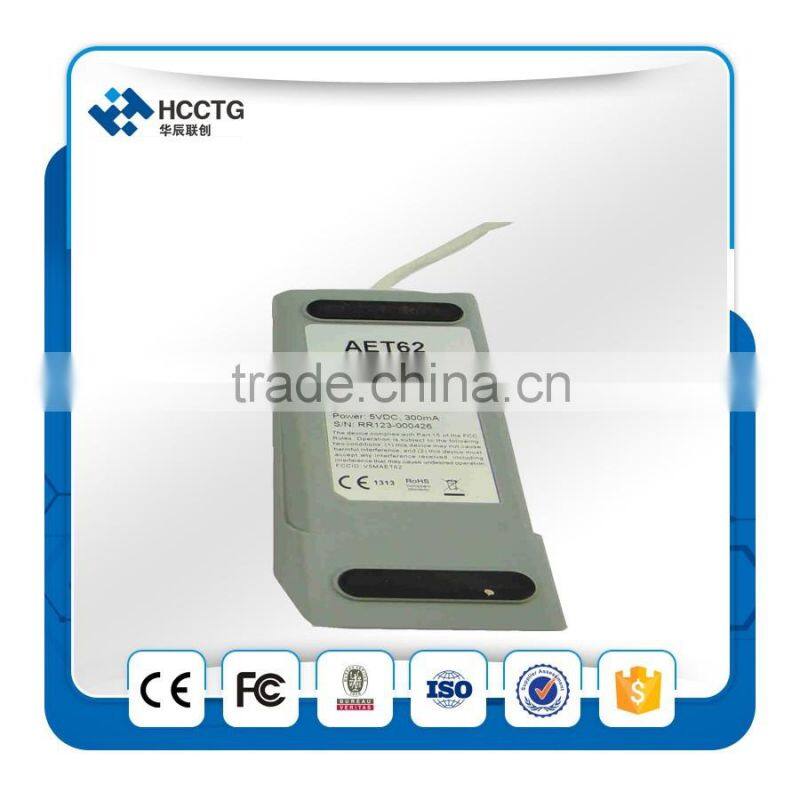

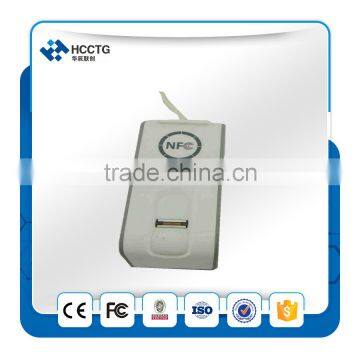

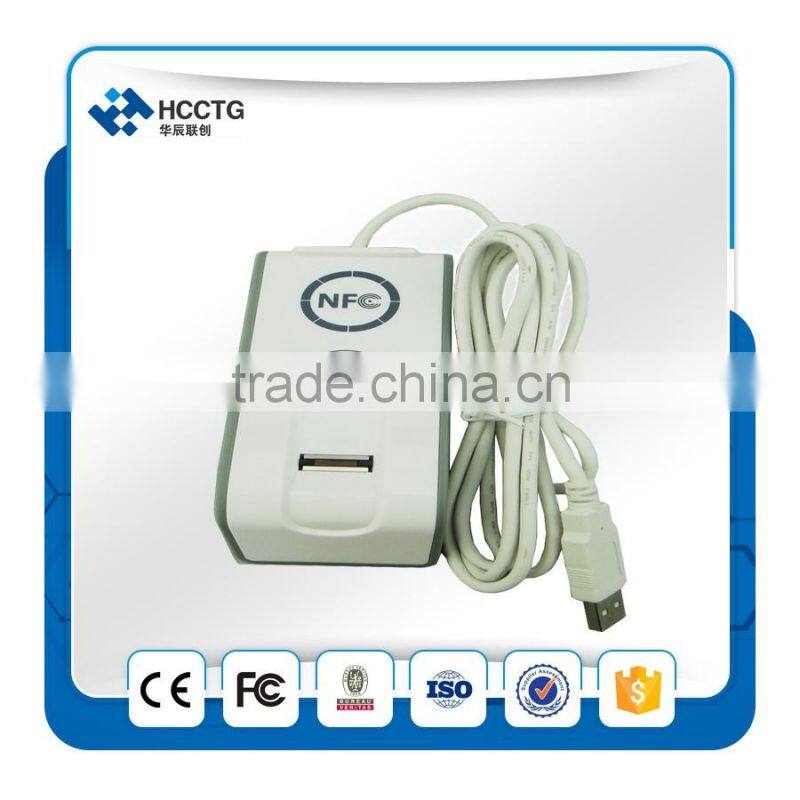

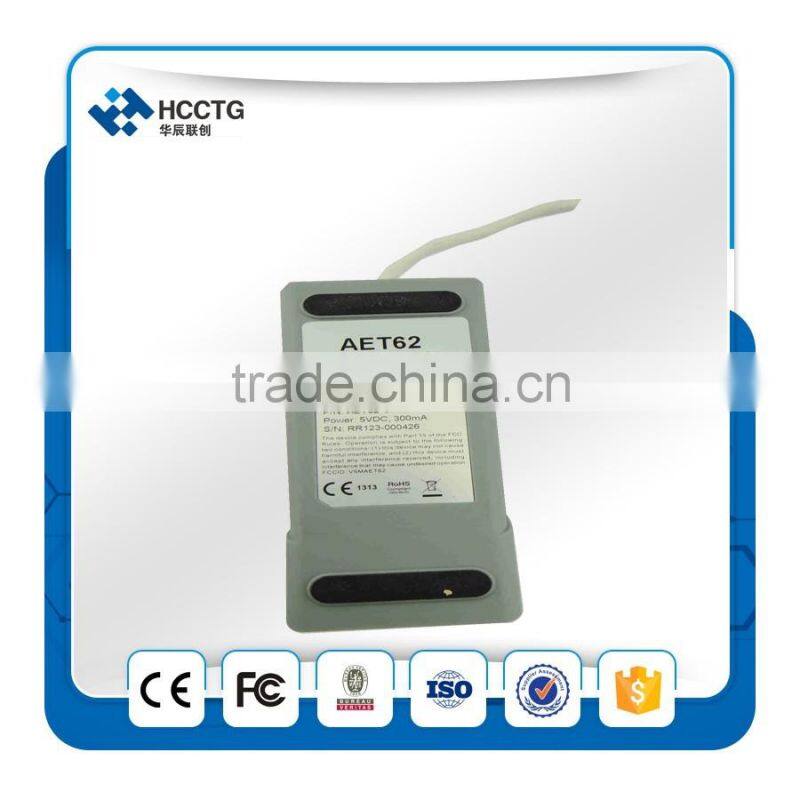

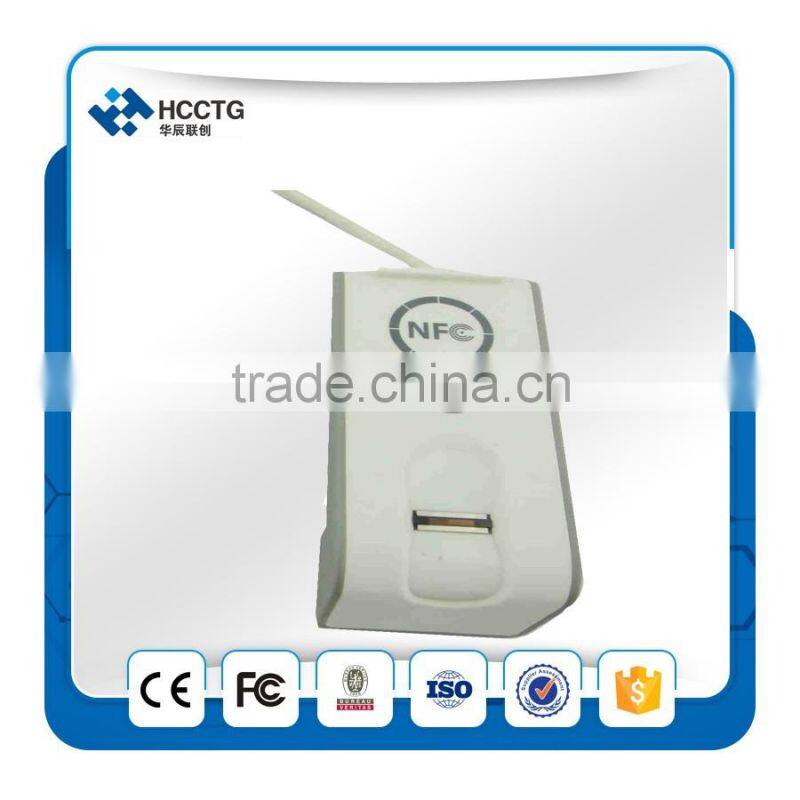

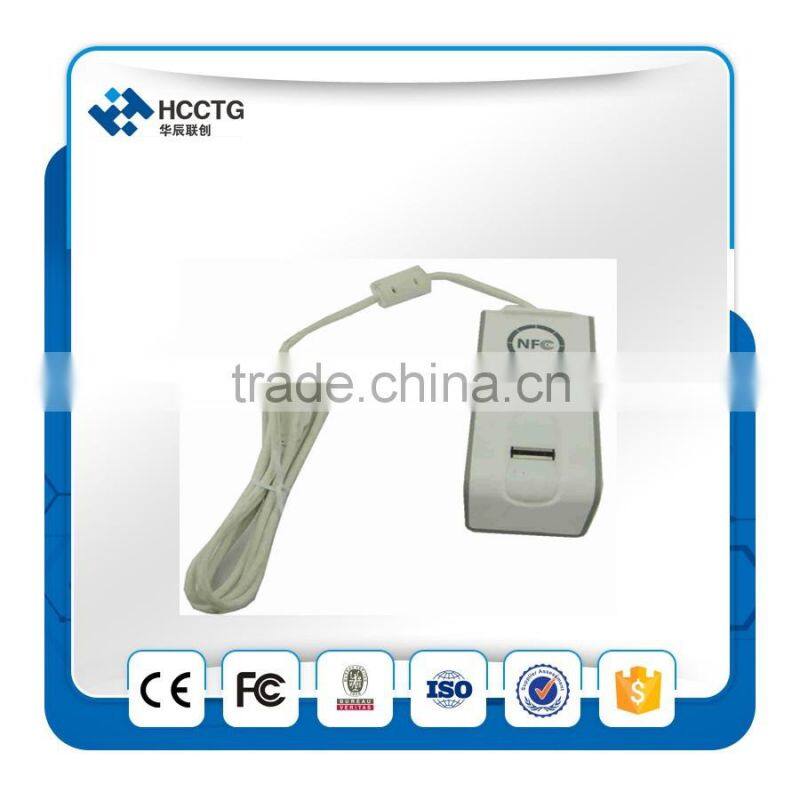

13.56 MHz Contactless NFC Reader With Fingerprint Sensor-AET62

US$ 89 - 95 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HCC

Model Number:

AET62

Shenzhen HCC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hong Kong Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HCC

Model Number AET62

13.56 MHz contactless NFC Reader with Fingerprint Sensor-AET62

Feature

Ÿ Integrated fingerprint scanner and 13.56 MHz contactless (RFID/NFC) smart card reader

Ÿ Full-speed USB interface

Ÿ Encrypted fingerprint template stored inside smart card

Ÿ ACR122U NFC Contactless smart card reader:
Compliant with PC/SC and CCID specifications
Read/write speed up to 424 kbps

Built-in antenna for contactless tag access, with reading distance of up to 30 mm (depending on tag type)

Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

Supports new MiFare Ultralight C, Plus SL1 (4 Byte UID), Plus SL3, and DESFire EV1

Supports all 3 modes of NFC: reader, card emulation and peer-to-peer Built-in anti-collision feature (only one tag can be accessed at any time)

ISO 7816 Compliant SAM Slot (Upon request)

Ÿ Fingerprint scanner:

Ÿ Match-on reader: Template extraction and matching algorithms run within the device itself, not in the PC (Using default fingerprint algorithm)

Ÿ UPEK TCS4-TCD50 swipe fingerprint sensor

Ÿ Swipe speed of up to 40 cm/sec (15 in/sec)

Ÿ Active sensor size - 9.6 mm x 0.2 mm

Ÿ High-resolution 508 DPI imaging, array size 192 x 4 pixels

Ÿ Supports image optimization and filtering

Ÿ Utilizes CMOS active capacitive pixel-sensing technology, resulting to high-quality fingerprint images in any environment

Ÿ Compliant with BioAPI 1.1 specification and Windows Biometric Framewor

Ÿ Supports 3rd-party fingerprint algorithms

Specification

Dimensions	121.5 mm (L) x 53.9 mm (W) x 28.4 mm (H)
Weight	170 g
Interface	USB Full Speed
Operating Distance	Up to 30 mm (depends on the tag type)
Supply Voltage	Regulated 5V DC
Supply Current	max. 300 mA
Operating Temperature	0 - 50 °C
Smart Card Interface Support	ISO 14443 Type A and B MiFare FeliCa 4 types of NFC (ISO/IEC 18092) tags
Compliance/Certifications	PC/SC, CCID, BioAPI 1.1, Windows Biometric Framework, CE, FCC, RoHS, USB Full Speed Microsoft WHQL XP, Vista, 7
Operating System Support	Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008,Win Server 2008 R2 Linux
