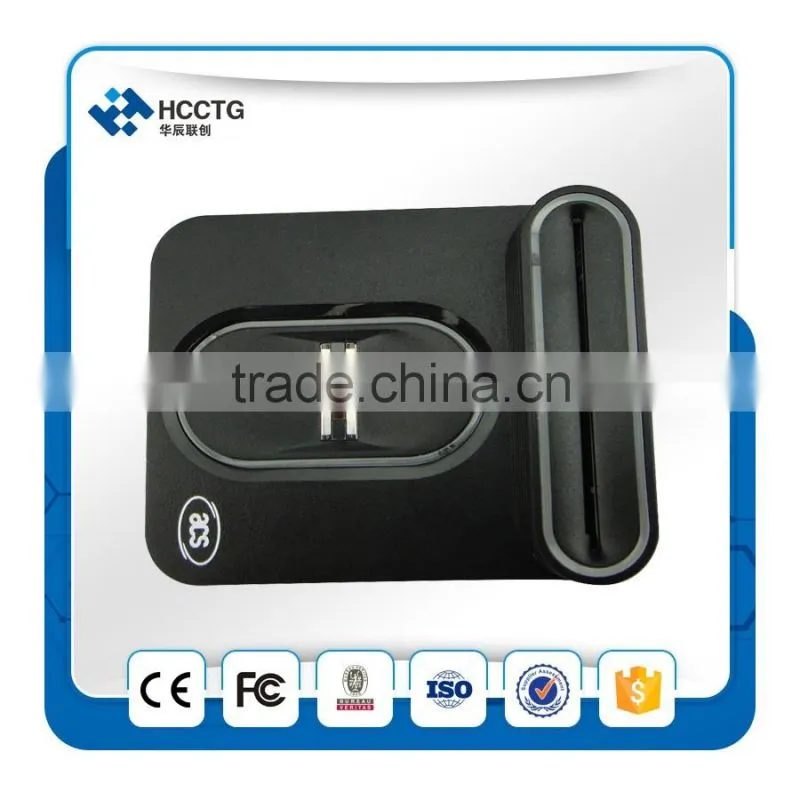

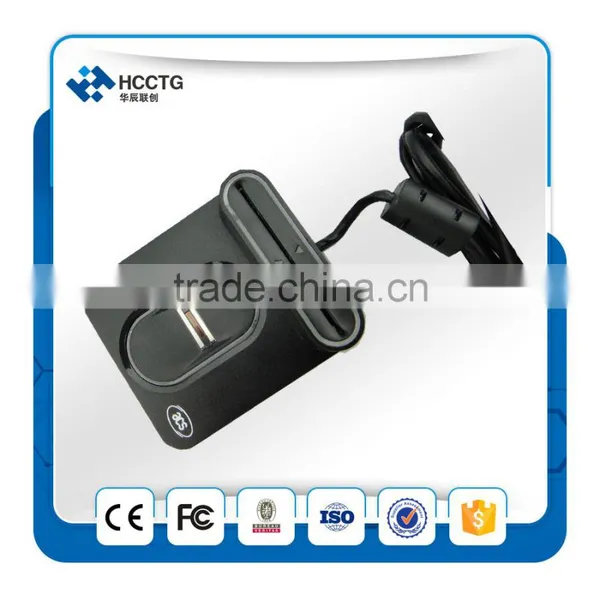

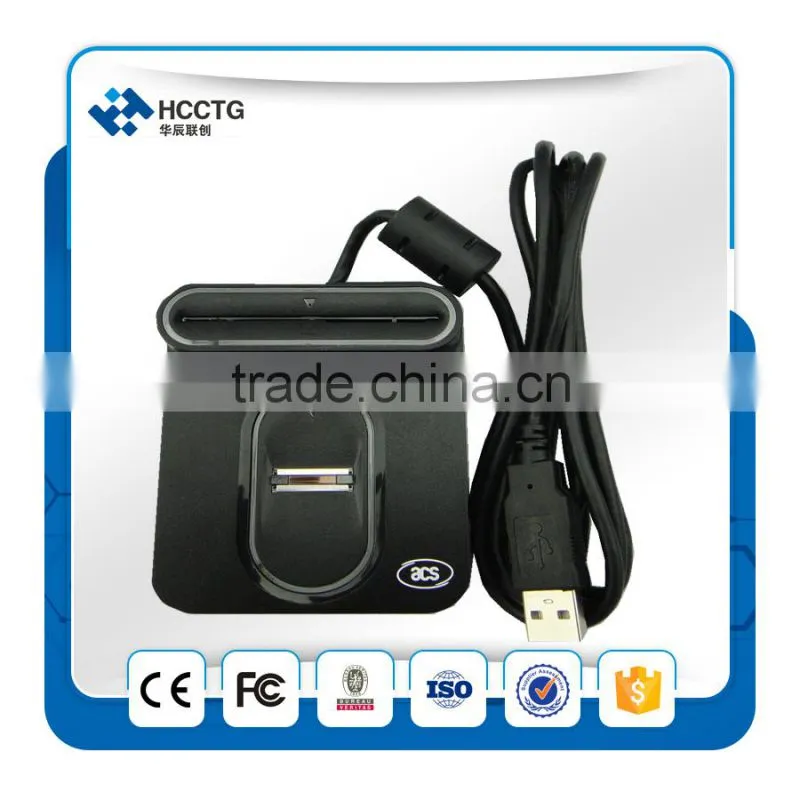

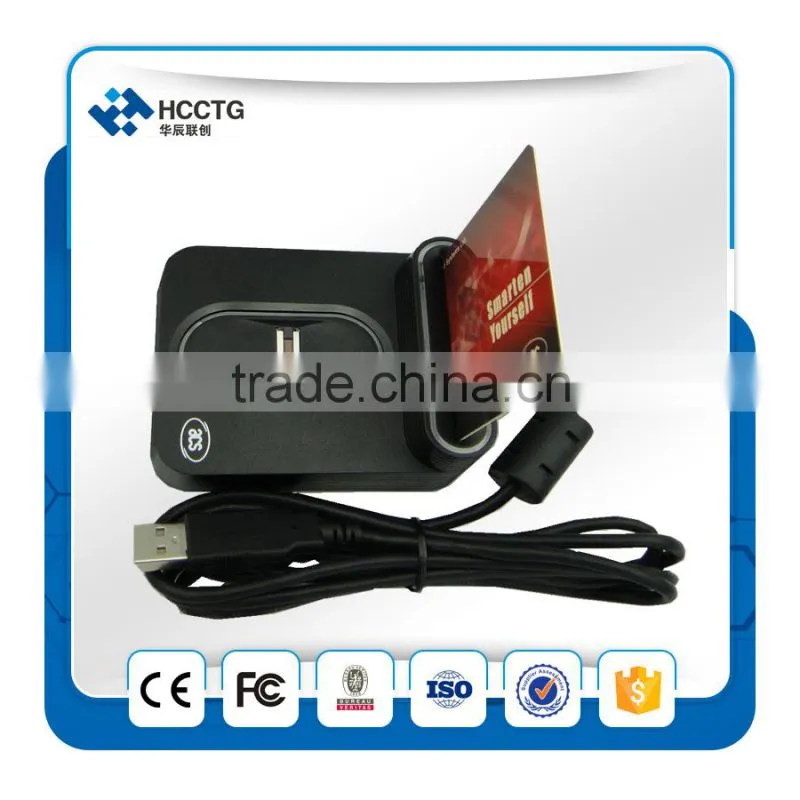

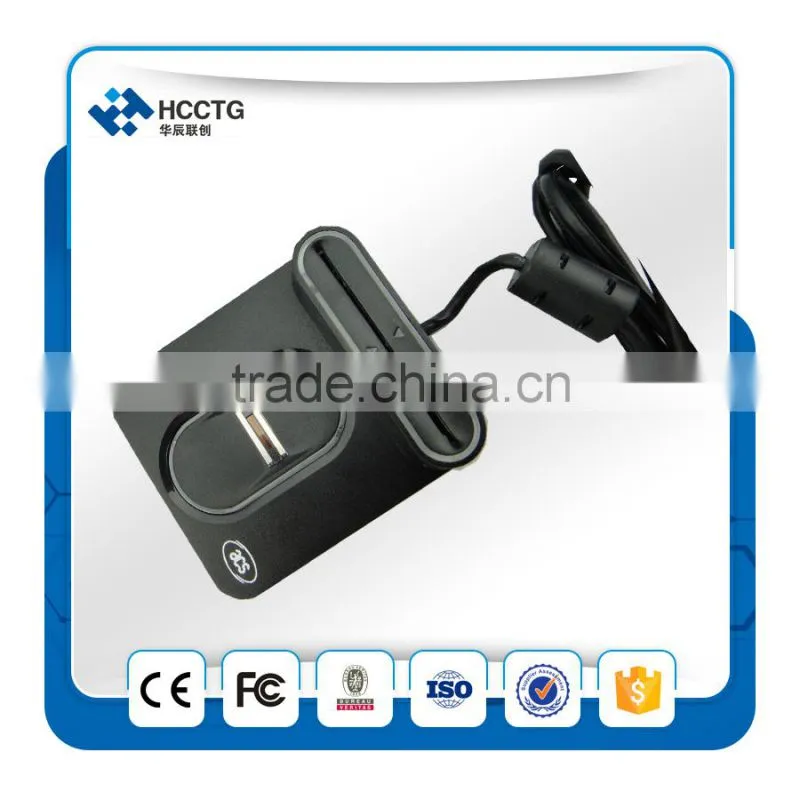

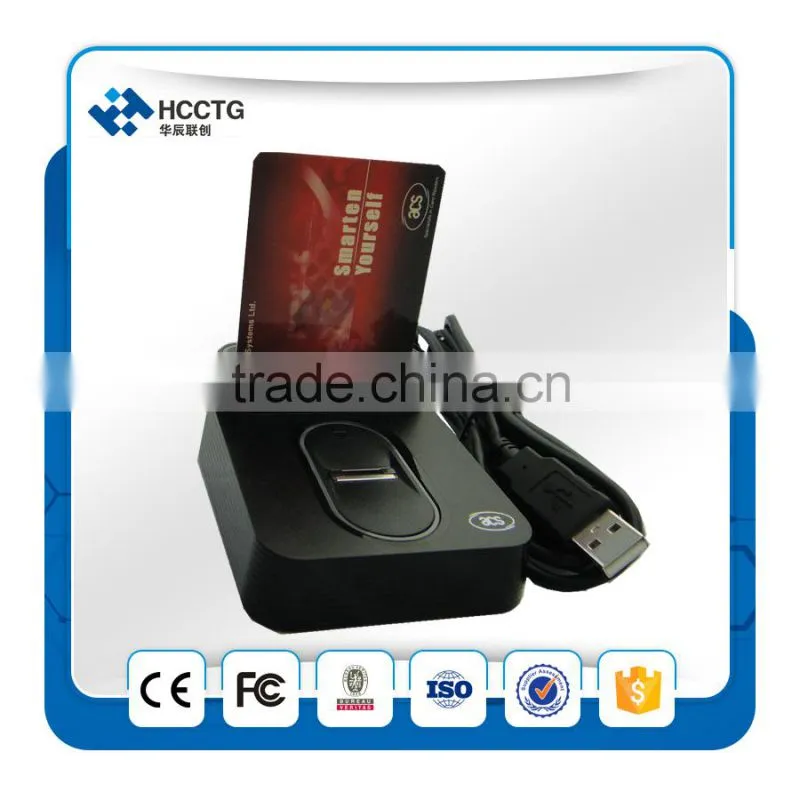

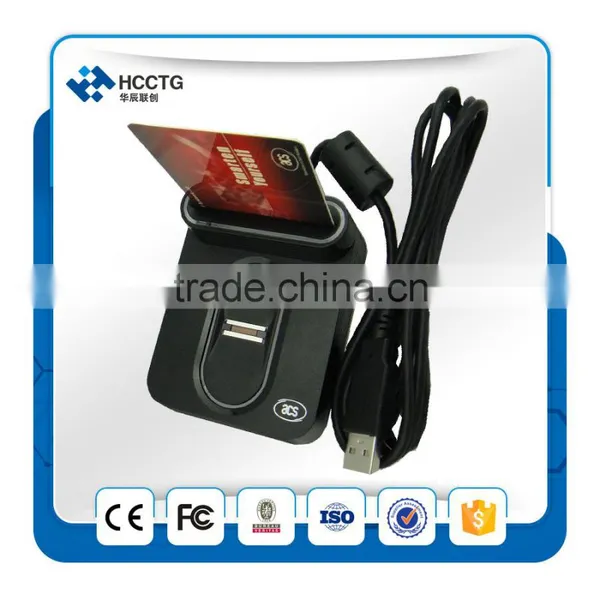

Integrated fingerprint scanner/Smart Card Reader with Fingerprint Sensor-AET65
Feature
Ÿ Integrated fingerprint scanner and smart card reader
Ÿ Full-speed USB interface
Ÿ Encrypted fingerprint template stored inside smart card
Compliant with PC/SC specification
Read/write speed up to 250 kbps
Supports all MCU card with T=0 or T=1 protocols
Supports ISO 7816 Class A, B and C (5V, 3V and 1.8V) cards
ISO 7816 Compliant SAM Slot
Ÿ Fingerprint scanner:
Match-on reader: Template extraction and matching algorithms run within the device itself, not in the PC (Using default fingerprint algorithm)
UPEK TCS4-TCD50 swipe fingerprint sensor
Swipe speed of up to 40 cm/sec (15 in/sec)
Active sensor size - 9.6 mm x 0.2 mm
High-resolution 508 DPI imaging, array size 192 x 4 pixels
Supports image optimization and filtering
Utilizes CMOS active capacitive pixel-sensing technology, resulting to high-quality fingerprint images in any environment
Compliant with BioAPI 1.1 specification and Windows Biometric Framework
Supports 3rd-party fingerprint algorithms
Specification
Dimensions |
85.1 mm (L) x 70.1 mm (W) x 35.5 mm (H) |
Weight |
194 g |
Interface |
USB Full Speed |
Supply Voltage |
Regulated 5V DC |
Supply Current |
Max. 50 mA |
Operating Temperature |
0 - 50° C |
CLK Frequency |
4 MHz |
Smart Card Interface Support |
Yes |
Compliance/Certifications |
ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) PC/SC, BioAPI 1.1, Windows Biometric Framework, CE, FCC, RoHS, USB Full Speed, Microsoft WHQL XP, Vista, 7 |
|
Operating System Support |
Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 R2 Linux |
Application
Ÿ e-Government
Ÿ e-Banking and e-Payment
Ÿ e-Healthcare
Ÿ Public Key Infrastructure
Ÿ Network Security
Ÿ Access Control
