Help CenterThe Lowest Price Best Quality Double Layer Fiber-reinforced Rubber Hose SAE 100 R3
Related Products
-
Fiber-reinforced Rubber Hose SAE J517 TYPE 100 R6US$ 0.5 - 9.5MOQ: 50 Meters -
Steel Wire Braided Hydraulic HoseUS$ 0.5 - 9.5MOQ: 100 Meters
-
Sufeite Top Quality Flexible Hydraulic Rubber Hose SAE 100 R6US$ 0.3 - 2.6MOQ: 100 Meters
-
SAE 100 R7 R8 Hydraulic Rubber HoseUS$ 0.6 - 3MOQ: 100 Meters
-
China Best Quality Hydraulic Rubber HoseUS$ 0.5 - 9.5MOQ: 50 Meters
Hydraulic Hose SAE J517 TYPE 100 R3
ISO9001:2008
Catelogue Is Available
Hengshui Soft ture industry CO.,LTD is located in Hebei province Hengshui city Yongan Industrial Park. The company is specialized in the development of high pressure steel wire reinforced rubber hose and assembly. The main product include: High Pressure Steel Wire Braided Rubber Hose, Super High Pressure Steel Wire Spiral Rubber Hose, The Flame Retardant and Antistatic Hose, Folder Cloth Hose, Engineering Machinery Hydraulic Hose, Temperature and Cold Resistant Rubber Hose, Gas Drainage Hose, Marine High Pressure Oil Tube, Oil Drilling Hose, various specifications of Stainless Steel Bellows, Metal Hose, PTFE Pipe.
With the advanced technology both at home and abroad,our company has prodcuced many kinds of products widely used in metallurgy,oil drilling,engineering machines,mining,various hydraulic machines and ect..In these years ,with the expansion of our business,our products are well received by our customers,have been sold all over our country,and exported to overseas.
Customers' satisfaction is our pursuit
Excellent service is our permanent promise

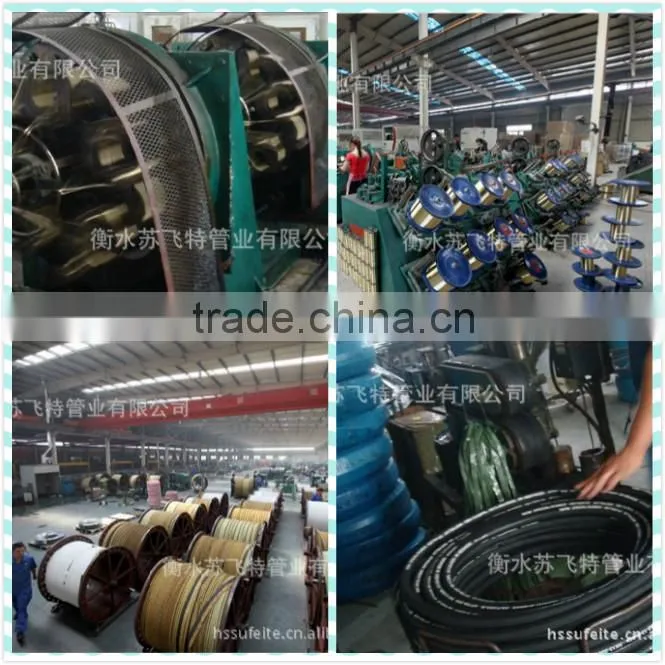

Advanced equipment is the guarantee of top-class quality

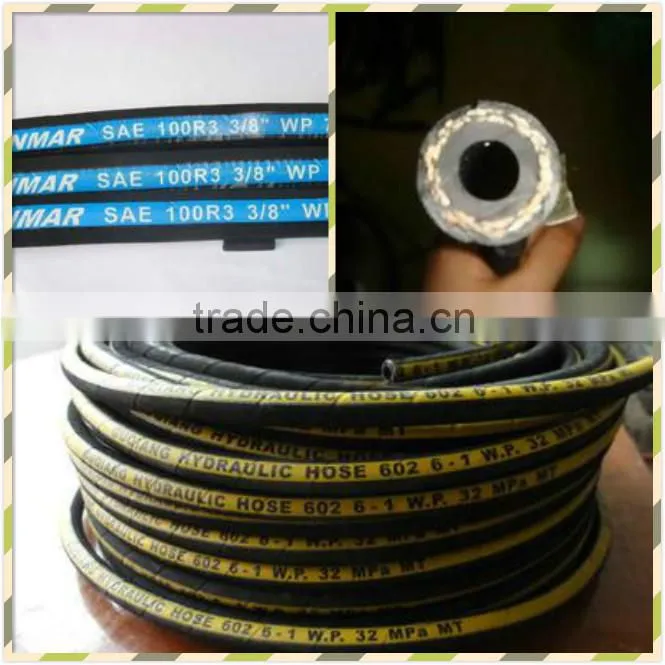

Name: Fiber-Reinforced Rubber Hose
Model: SAE J517 TYPE 100 R3
Construction
Inner tube: Oil resistant synthetic rubber .
Reinforcement: Two high tensile fibre braid (2T/B) .
Outter cover: Abrasion and weather resistant synthetic rubber .
Temperature range: -40℃ ~100℃
Fiber-Reinforced Rubber Hose SAE J517 TYPE 100 R3 data :
| DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 12.7 | 10.5 | 1520 | 42.0 | 6500 | 75 | 0.16 | 20/30/50/100 |
| 6 | 1/4 | 6.4 | 14.3 | 8.7 | 1350 | 34.8 | 5300 | 75 | 0.19 | 20/30/50/100 |
| 8 | 5/16 | 7.9 | 17.5 | 8.4 | 1300 | 33.6 | 5200 | 100 | 0.26 | 20/30/50/100 |
| 10 | 3/8 | 9.5 | 19 | 7.8 | 1200 | 31.2 | 4840 | 100 | 0.28 | 20/30/50/100 |
| 13 | 1/2 | 12.7 | 23.8 | 7.0 | 1080 | 28.0 | 4340 | 125 | 0.4 | 20/30/50/100 |
| 16 | 5/8 | 15.9 | 27 | 6.1 | 945 | 24.4 | 3780 | 140 | 0.55 | 20/30/50/100 |
| 19 | 3/4 | 19.0 | 31.8 | 5.2 | 800 | 20.8 | 3220 | 150 | 0.69 | 20/30/50/100 |
| 25 | 1 | 25.4 | 38 | 3.9 | 600 | 15.6 | 2420 | 205 | 0.82 | 20/30/50 |
| 32 | 1 1/4 | 31.8 | 44.4 | 2.6 | 40 | 10.4 | 1610 | 250 | 1.00 | 18/20/30/40 |
