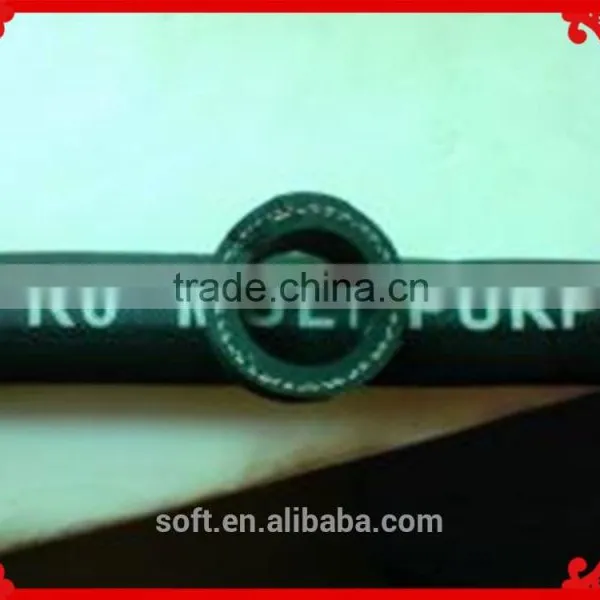

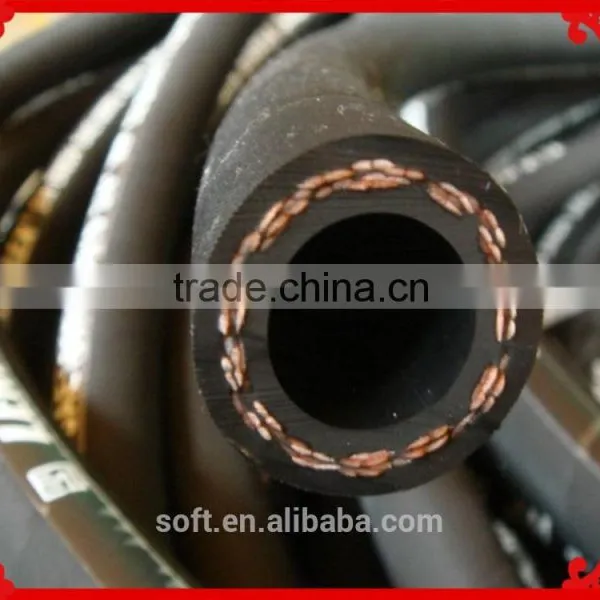

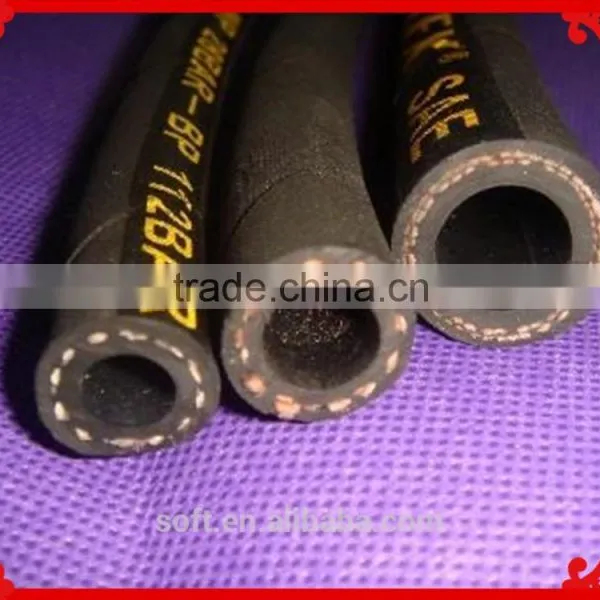

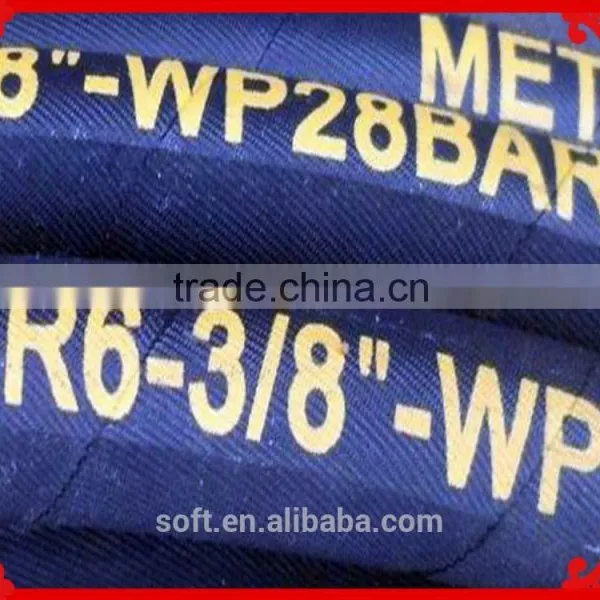

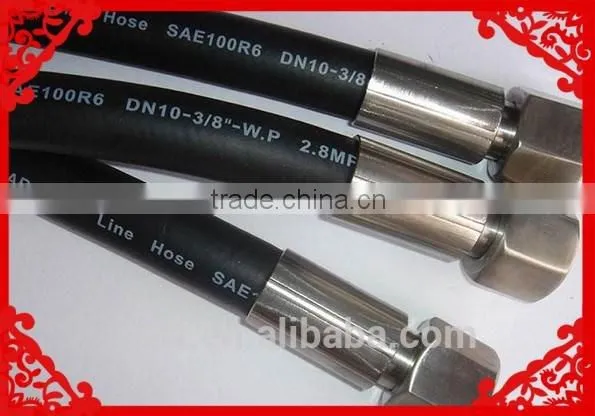

Fiber-reinforced Rubber Hose SAE J517 TYPE 100 R6
US$ 0.5 - 9.5
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Sufeite, Sufeite
Model Number:
SAE J517 TYPE 100 R3, SAE J517 TYPE 100 R3/R6
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Wire Braided Hydraulic HoseUS$ 0.5 - 9.5MOQ: 100 Meters -
Sufeite Top Quality Flexible Hydraulic Rubber Hose SAE 100 R6US$ 0.3 - 2.6MOQ: 100 Meters
-
SAE 100 R7 R8 Hydraulic Rubber HoseUS$ 0.6 - 3MOQ: 100 Meters
-
China Best Quality Hydraulic Rubber HoseUS$ 0.5 - 9.5MOQ: 50 Meters
-
Hydraulic Hose R1 ATUS$ 0.5 - 2MOQ: 10 Meters
Place of Origin
Hebei, China
Brand Name
Sufeite, Sufeite
Model Number
SAE J517 TYPE 100 R3, SAE J517 TYPE 100 R3/R6
SAE J517 TYPE 100 R6 STANDARD

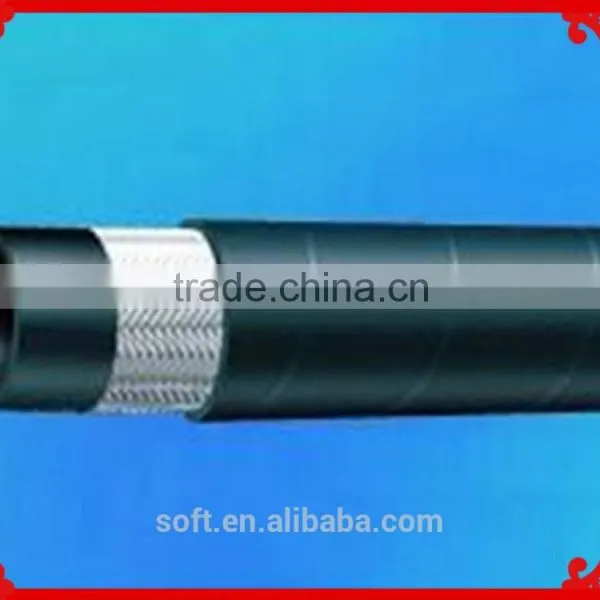

Tube : Oil resistant synthetic rubber Reinforcement : one high tensile steel fibre braid (1T/B) Cover Compound : Abrasion and weather resistant synthetic rubber Temperature range : -40℃.to +100℃
|
| DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 11.1 | 3.4 | 500 | 13.8 | 2000 | 50 | 0.11 | 20/30/50/100 |
| 6 | 1/4 | 6.4 | 12.7 | 2.8 | 400 | 11.0 | 1600 | 65 | 0.15 | 20/30/50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 2.8 | 400 | 11.0 | 1600 | 75 | 0.16 | 20/30/50/100 |
| 10 | 3/8 | 9.5 | 15.9 | 2.8 | 400 | 11.0 | 1600 | 75 | 0.18 | 20/30/50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 2.8 | 400 | 11.0 | 1600 | 100 | 0.26 | 20/30/50/100 |
| 16 | 5/8 | 15.9 | 23.0 | 2.4 | 350 | 9.7 | 1400 | 125 | 0.29 | 20/30/50/100 |
| 19 | 3/4 | 19.0 | 26.6 | 2.1 | 300 | 8.3 | 1200 | 150 | 0.4 | 20/30/50/100 |
