Home > Chemicals > Rubber & Rubber Products > Rubber Tube, Pipe & Hose > High Pressure Rubber Hydraulic Hose SAE 100R1AT/DIN EN 853 1SN

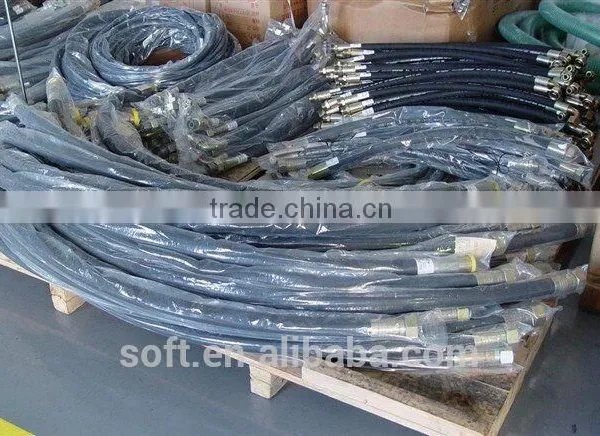

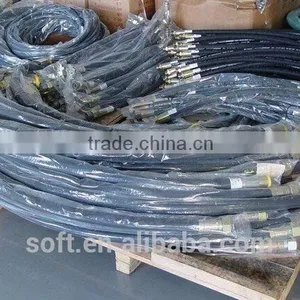

High Pressure Rubber Hydraulic Hose SAE 100R1AT/DIN EN 853 1SN
US$ 0.5 - 9.5
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Sufeite, Sufeite
Model Number:
SAE/DIN, R1AT/1SN, R2AT/2SN, 4SH, 4SP
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Wire Braided High Pressure Rubber Hose SAE J517 TYPE 100 R5US$ 0.5 - 9.5MOQ: 50 Meters -
Steel Wire Braided Hydraulic HoseUS$ 0.5 - 9.5MOQ: 100 Meters
-
Steel Wire Braided Hydraulic Hose SAE 100R16US$ 0.5 - 2.5MOQ: 200 Meters
-
Steel Wire Braided High Pressure Hydraulic Hose SAE J517 TYPE 100 R16US$ 0.5 - 9.5MOQ: 50 Meters
-
The Lowest Price Best Quality Double Layer Fiber-reinforced Rubber Hose SAE 100 R3US$ 0.5 - 5MOQ: 200 Meters
Place of Origin
Hebei, China
Brand Name
Sufeite, Sufeite
Model Number
SAE/DIN, R1AT/1SN, R2AT/2SN, 4SH, 4SP
SAE 100 R1AT / DIN EN 853 1SN STANDARD
Tube : Oil resistant synthetic rubber Reinforcement : one high tensile steel wire braid Cover : Abrasion and weather resistant synthetic rubber Temperature range : -40 ℃ to +100 ℃
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.24 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20 to 40 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20 to 40 |
