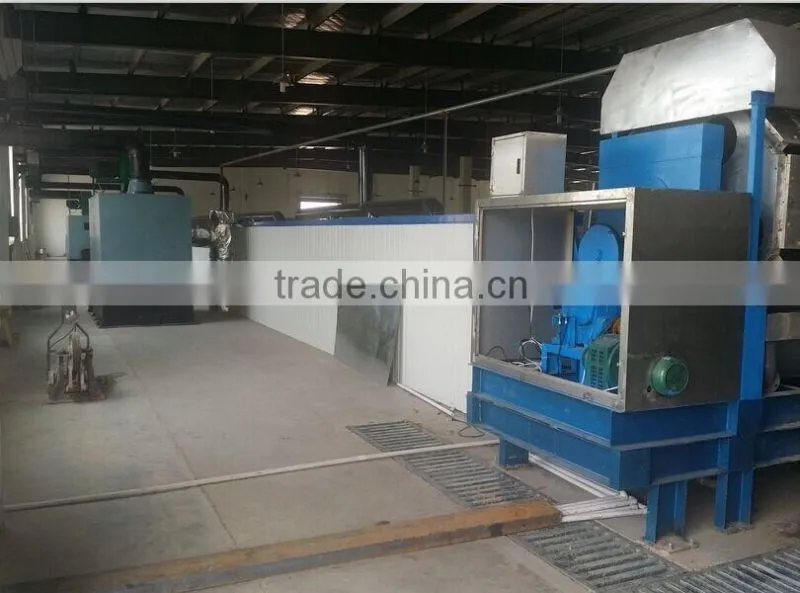

Best Quality Small Egg Tray Machine

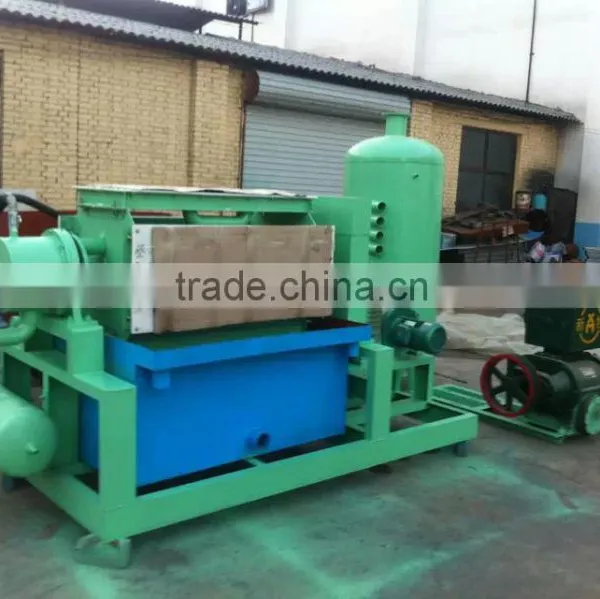

1.Brief Introduction of Small Egg Tray Machine
This small egg tray machine is a kind of machine which absorbs paper pulp the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
Various types and output of egg tray making machines can be supplied by our company, such as 800-1000pcs per hou, 2000pcs per hour, 3000pcs per hour, 4000pcs hour and so on.
2. Technical Parameters and compositon parts of Small Egg Tray Machine:
1. Pulping system
Pulper, 1.0M3,15kw;
vibration screen, 0.9M2,3kw;
mixer; pulp pump;water pump,control cabinet for pulping system,etc

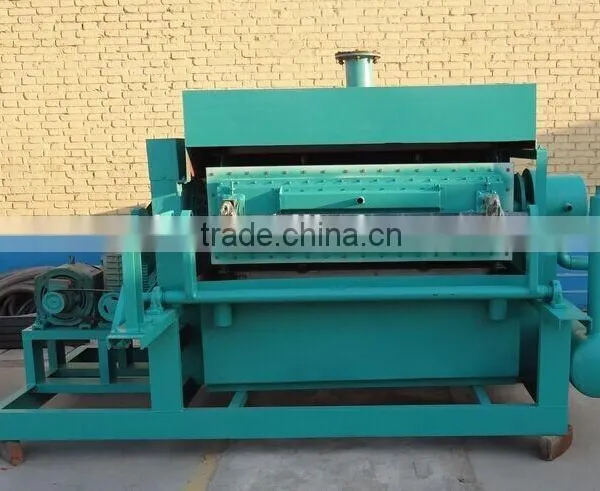

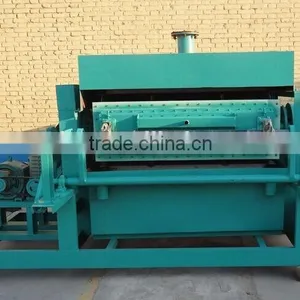

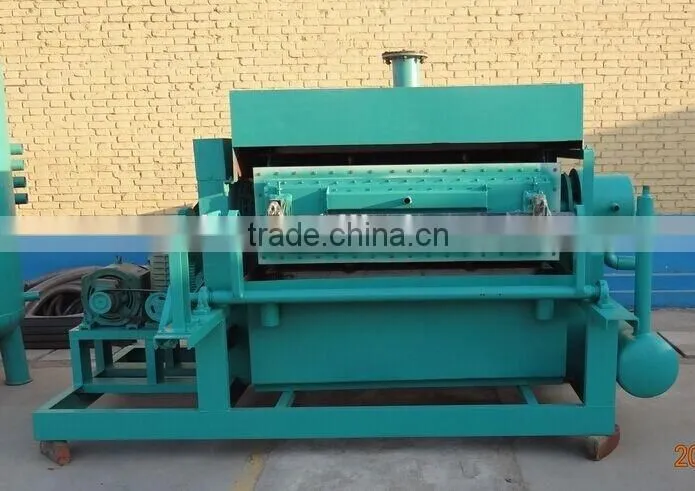

2. Forming system
Consist of 1pc of forming platen and 1 pc of transfering platen.

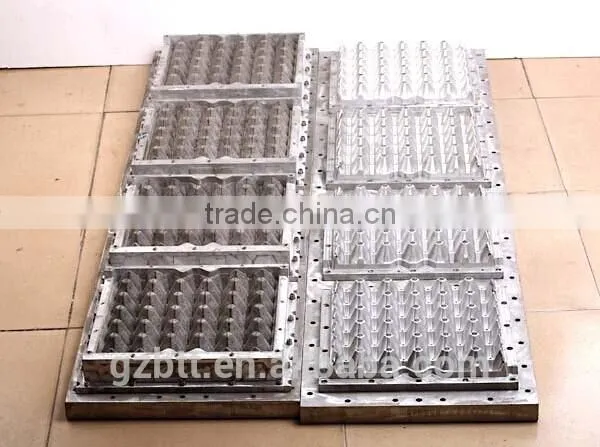

Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
Forming efficiency:5-6cycles/min;
Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.
Egg box Machine can produce various trays/cartons with different moulds as per your specification or samp... Product Type: Egg Tray Machine
output :700pcs,1000pcs,1300pcs per hour

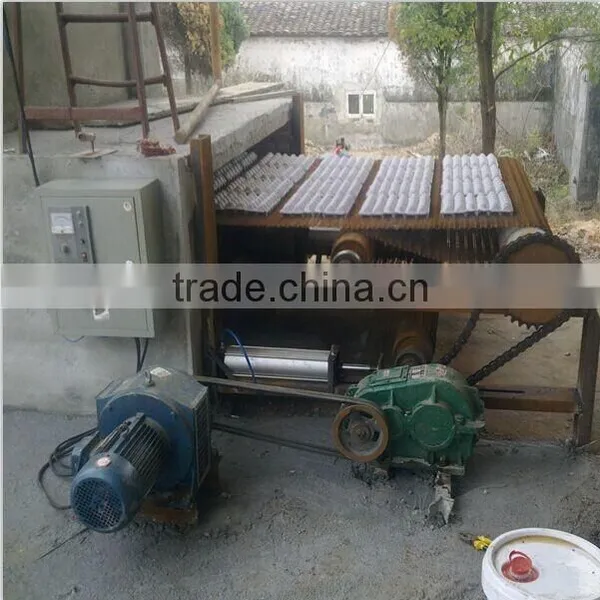

3. Drying system
Outline dimension:20080x2650x3600mm;
Single layer conveying chain;heated by section;multi burners;
Six layers drying line, energy saving and saving place
The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
4. Stacking system
The finished products will be counted and stacked automatically after drying.
Model |
Mechanization |
Working Mode |
Capacity |
Drying System |
GV-W1000 |
Semi -automatic |
Reciprocating Type |
800-1000 pcs/h |
small handcart |
GV-W2000 |
Semi-automatic |
Reciprocating Type |
2000-2200 pcs/h |
small handcart |
GV-F1000 |
Automatic |
Rotary Type |
800-1000 pcs/h |
mesh belt dryer |
GV-F1500 |
Automatic |
Rotary Type |
1000-1500pcs/h |
mesh belt dryer |
GV-F2000 |
Automatic |
Rotary Type |
2000-2200 pcs/h |
mesh belt dryer |
GV-F2500 |
Automatic |
Rotary Type |
2200-2500 pcs/h |
mesh belt dryer |
GV-F3000 |
Automatic |
Rotary Type |
3000-3500 pcs/h |
mesh belt dryer |
GV-F5000 |
Automatic |
Rotary Type |
3500-4000 pcs/h |
mesh belt dryer |
| Machine type | SF-1*3egg tray machine |
| Raw material | Waste paper, waste bn |
| Production varieties | Egg tray, paper tray |
| Production speed | 1000-1200piece/hour |
| Total power | 58kw |
| Pulp concentration for moulding machine | 0.8-1% |
| pressure of compressed air | 0.5-0.7 Mpa |
| vacuum negative pressure | minus 0.035-minus 0.045 Mpa |
| voltage | 380V(can be adjusted) |
| frequency | 50Hz(can be adjusted) |
