Specifications

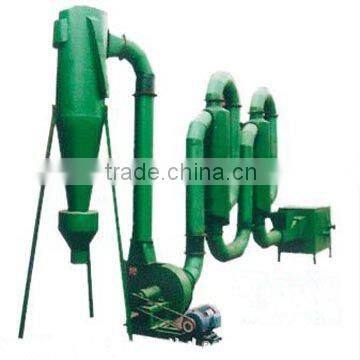

Rice Husk Rotary dryer1.reasonable structure
2.large production capacity
nvenient maintenance
ISO:9001-900
Rice Hush Drier
Rice husk rotary drier
Capacity: 300 to 400kg/hr
Power: 4kW
Material can be powder, sawdust, straw, and rice husk
Suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks, and so on
The moisture of wet materials is at 20 to 30%
The rice husk rotary drier is equipped one fuel boiler, inlet, steel pipe, exhaust blower (fan), cyclone
Wet materials are input into the hopper
The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly
And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of rotary drier, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan)
This rice husk rotary drier reduces the moisture to 8 to 12% with the advantages of lower cost consumption and high efficiency
Technical Data:
Model | HJ-I | HJ-II | HJ-III | HJ-IV |
Number of motors | 1 | 3 | 3 | 3 |
Power | 4 | 7.5+0.75+0.75 | 11+0.75+0.75 | 15+0.75+0.75 |
Capacity | 300-400 | 500-600 | 700-800 | 1000-1200 |
Diameter of materials | <1mm & < 5mm | <1mm & < 5mm | <1mm & < 5mm | <1mm & < 5mm |
Gross Weight(kg) | 1100 | 2260 | 3080 | 3120 |
Consumption of wood waste(kg/h) | 10-15 | 15-20 | 20-30 | 25-35 |
Overall dimension( m )(length*width*height) (space required) | 7*2*4 | 9*2*4 | 12*2.5*4 | 12*2.5*4 |
Shpping size(m3) | (2 pcs) 1.5*1.06*1.1 2.44*1.22*1.55 | (3 pcs) 1.23*1.24*1.73 1.5*1.06*1.1 2.44*1.22*2.1 | (3 pcs) 1.23*1.24*1.73 1.45*1.42*1.41 2.45*1.72*1.91 | (3 pcs) 1.38*1.3*1.8 1.6*1.5*1.5 2.53*1.8*2.0 |
Working Temperature | 400 °C | 400 °C | 400 °C | 400 °C |
No need to use other gauges fitted | ||||
