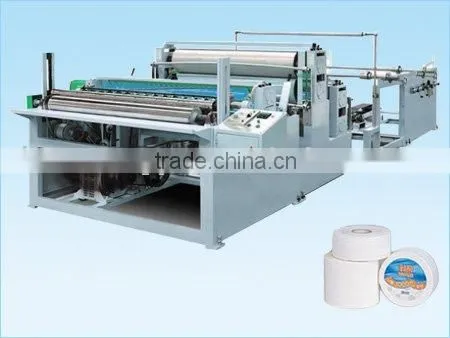

Automatic Paper Slitting Rewinder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi-automatic Toilet Paper RewinderNegotiableMOQ: 1 Set -
Toilet Paper Cutting MachineNegotiableMOQ: 1 Set
-
Automatic Slitter Rewinder MachineNegotiableMOQ: 1 Set
-
Automatic Toilet Paper Rewinding MachineUS$ 9,800 - 14,000MOQ: 1 Set
-
Toilet Paper Roll Sillting and Rewinding MachineNegotiableMOQ: 1 Set
Condition
New
Type
Slitting Rewinder
Computerized
Yes
Place of Origin
China
Brand Name
ZY
Model Number
1092-2700mm
Voltage
380V
Power(W)
4.5-11kw frequency
Dimension(L*W*H)
6200X2800X1800-6200X4000X1800
Weight
1800-4800kg
Warranty
one year
Specifications
Automatic Paper Slitting rewinder1.high quality
2.low price
3.excellent performance
4.best after sale service
ZY Automatic Slitting Rewinder
1. Using inflatable shaft winding, so that accurate positioning is simple paper tube;
2. Blank holder system: using steel on steel blank, independent cylinder adjustment, to facilitate adjustment to each layer of paper is not hierarchical;
3. Horizontal back paper planes, air, on paper, wide belt pneumatic feed, paper base paper for each frame are independent tension adjustment device;
4. Using traction base paper before and after the switch point, the operation easier and safer;
5. According to customer needs, increasing trimming spray sealing feature (subscription required).
| Model | 1092 | 1575 | 1760 | 2200 | 2500 | 2800 |
| Base paper width(mm) | 1330 | 1750 | 1950 | 2150 | 2450 | 2700 |
| Finished Diameter | Φ90-150mm(Elastic adjustable) | |||||
| Feeding paper | Φ1100mm(Other specifications please specify) | |||||
| Paper core diameter of base paper | 76.2mm(Other specifications please specify) | |||||
| Punching Pitch | 100-160mm | |||||
| Processing capacity | 180-200M / min | |||||
| Rolling | Gas up shaft | |||||
| Embossed case | Single-pressure, double embossed, steel to steel embossing | |||||
| Embossing roller end | Felt roll, wool roller, roller | |||||
| Calendar | Steel on steel, steel on rubber | |||||
| Paper planes back | 1-3 layers (layers that specify) | |||||
| Pneumatic system | 3 air compressor, at least pressure 5kg/cm2pa (customer-owned) | |||||
| Power | 4.5-11KW Frequency | |||||
| Dimensions(mm) | 6200X2800X1800-6200X4000X1800 | |||||
| Weight | 1800-4800kg | |||||
