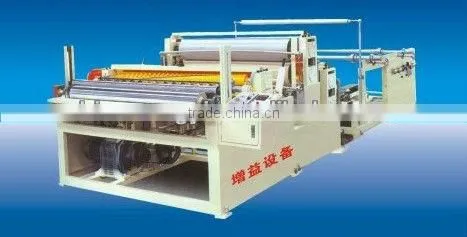

Automatic Slitting and Rewinding Machine

Name: Automatic Slitting and Rewinding Machine
Brand: Zengyi
SKU: 121387429
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Slitting Rewinder

Computerized:

Yes

Zhucheng Zengyi Environmental Protection Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Slitting Rewinder

Computerized Yes

Place of Origin Shandong, China

Brand Name Zengyi

Model Number ZY

Power(W) 4.4 - 11

Weight 1800 - 4800

Warranty one year

Specifications

automatic slitting and rewinding machine
1.PLC control system
2.Easy to operate
3.independent tensioning device

automatic slitting and rewinding machine

Main characteristics

Making paper tube position accurate and easy.
Press trimming system, adopts steel to steel press trimming, independent adjusting cylinder, easy to adjust.
Horizontal type unwinding stand, pneumatic put paper, pneumatic wide belt

transport paper ,each based paper roll has independent tensioning device.

Adopts front and rear inching switch to pull based paper, operation is more convenient and safe.
According to customer’s requirements, we can increase paper repair side glue spray and seal function. (need order in advance)

Technical parameter

Model	1092	1575	1760	2200	2500	2800
based paper width	1330	1750	1950	2150	2450	2700
finished paper diameter(mm)	Φ90-300(mm) tension adjustable
based paper diameter	Φ1100 other spiciation please appoint.
based paper core inner diameter	76.2mmother spiciation please appoint.
Punching pitch	90-160mm
Production capacity	180-200 m/min
rolling	pneumatic core shaft
Embossing	one side embossing,two side embossing, steel to steel embossing
Embossing roller	Felt Roller, Wool Roller, Rubber Roller
Unreeling stand	1-3 layer
calender roll	steel to steel, steel to rubber
Air-operated system	3 sets air compressors, ure 5kg/cm2( customer needs to prepare by himself)
Power	4.5-11kw
Overall dimension (mm)	6200×2600×1800-6200×4000×1800
Machine weight	1800-4800kg
Optional configuration
Embossing equipment	one side embossing,two side embossing, steel to steel embossing
Embossing roller	Felt Roller, Wool Roller, Rubber Roller
Unreeling stand	1-3 layer
Press trimming equipment	need to order in advance
calender roll	steel to steel, steel to rubber
scrap edge equipment	Vacuum adsorption trimming
repair side seal equipment	need to order in advance
Drive system	frequency control
