LIYU DC Series Cutting Plotter

LIYU DC Series Cutting Plotter photo-1
LIYU DC Series Cutting Plotter photo-2
LIYU DC Series Cutting Plotter photo-3
LIYU DC Series Cutting Plotter photo-4
LIYU DC Series Cutting Plotter photo-5
LIYU DC Series Cutting Plotter photo-6
Negotiable MOQ: 10 Cases (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
LIYU
Model Number:
DC631/DC801/DC1261
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name LIYU
Model Number DC631/DC801/DC1261
Voltage AC220V/110V,50Hz~60Hz
Cache Capacity 1Gb
Paper Feed Width 710mm/880mm/1340mm
Cutter Pressure 1-800g
Cutting Width 630mm/800mm/1200mm
Cutting Speed 800mm/s
Driver Artcut, CutMaster, Flexistater.
Cutting Length Limitless
Repeat Cutting 0.1mm
Size 1.05*0.37*0.46m/1.22*0.37*0.46m/1.66*0.37*0.46m



LIYU DC Series Cutting PlotterLIYU DC Series Cutting Plotter

Highlight Features:



1. Rael Contour cut function,full-automatic and easy to achieve contour cut without interference from other light sources,high resolution.

2. New adopted ARM processor and new driver module,system more powerful,driving more stable.

3. USB 2.0 interface, support hot-swappable, and is equipped with serial port to support the long-distance data transmission.Besides,it supports U disk direct reading function,convenient and fast.

4. 1Gb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be achieved even blackout.

5.New high-speed STM32 remote control system, higher speed, lower noise.

6.Digital force & speed adjustable, direct and steady.

7.Humane design, allows to adjust cutting force and speed while working.

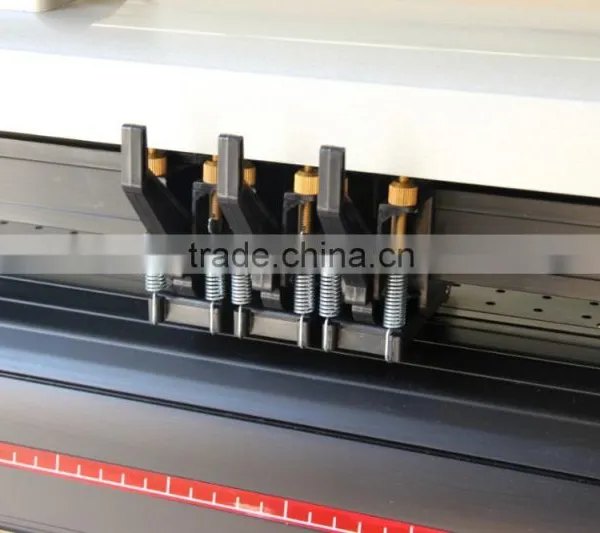

8.High-precision "steel barbed" axis, higher accuracy.

9.Auto. memory of blade force & Speed, adjustable at any time, easy to use.

10.Emergency stop & stop to return at any time to monitor the cutting quality, easy to operate.

11.The product has the fuction of offline copy up to 99 copies, which helps to save time and working labor effectively.

12.DC series can be compatible with CorelDRAW, and it can be output  from CorelDRAW directly.

13.DC series Standard with Auto Contour cut function, full-automatic and easy to achieve contour cut without interference from other light sources, high resolution.
