Home > Products > Water Meters > Volumetric rotary piston Water Meter

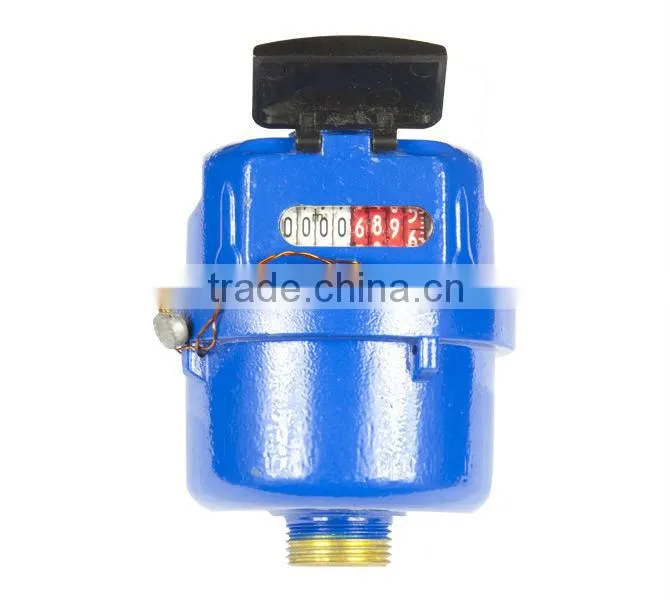

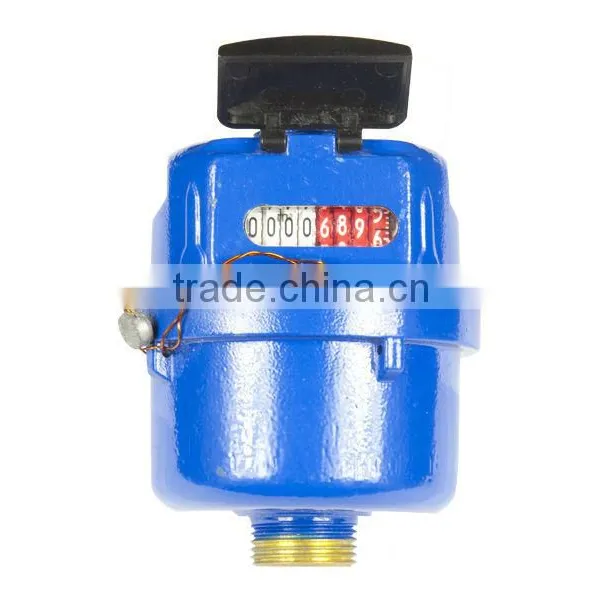

Volumetric rotary piston Water Meter
- 200000 Piece / Pieces per Month
- Ningbo
- T/T D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YONGGANG | Model Number: | LXH-15A |
Product Description
Specifications
Rotary Piston water meter1,rotary piston type
2,Brass body
3,conform to ISO 4064 class B
4,high quality
Feature:
--Volumetric rotary piston principle of measurement;
--LXH-15-20 is no location limitation for installation. Accuracy is not to be affected Wherever installed at a horizontal, vertical or inclined pipeline;
--Register is sealed with a special liquid to keep a clear reading in long term service;
--Mechanism use of high-quality material to ensure a stable characteristic;
--Accurate measurement with conformity to ISO 4064 class C.
MAIN TECHNICAL DATA
Type | Size (mm) | Class | qs Max Flow | qp Nominal Flow | qt Transitional Flow | qmin Min. Flow | Min. Reading | Max. Reading | |
m3/h | L/h | m3 | |||||||
LXH-15 | 15 | C | 3 | 1.5 | 22.5 | 15 | 0.0001 | 9999 | |
LXH-20 | 20 | C | 5 | 2.5 | 37.5 | 25 | 0.0001 | 9999 | |
DIMENSIONS AND WEIGHT
Type | Size | L Length | B Width | H Height | Connecting Thread D | Weight kg |
mm | ||||||
LXH-15 | 15 | 110/150 | 85 |
| G3/4B | 1.3 |
LXH-20 | 20 | 130 | 85 |
| G1B | 1.5 |
WORKING CONDITION
Water temperature: ≤40°C
Water pressure: ≤1Mpa
NOTE
Technical data conform to International Standard ISO4064
APPLICATION
Measuring the volume of cold portable water passing through the pipeline
FEATURES
Volumetric meter, on principle of piston rotation, accurate measurement, easy and long term clear reading, etc.
Contact Us
- Ningbo Yonggang Instrument Co., Ltd.
- Contact nameEthan Huang
- Phone86-574-63578074
- AddressWeisan Road, West Industrial Zone, Xinpu Town, Cixi
